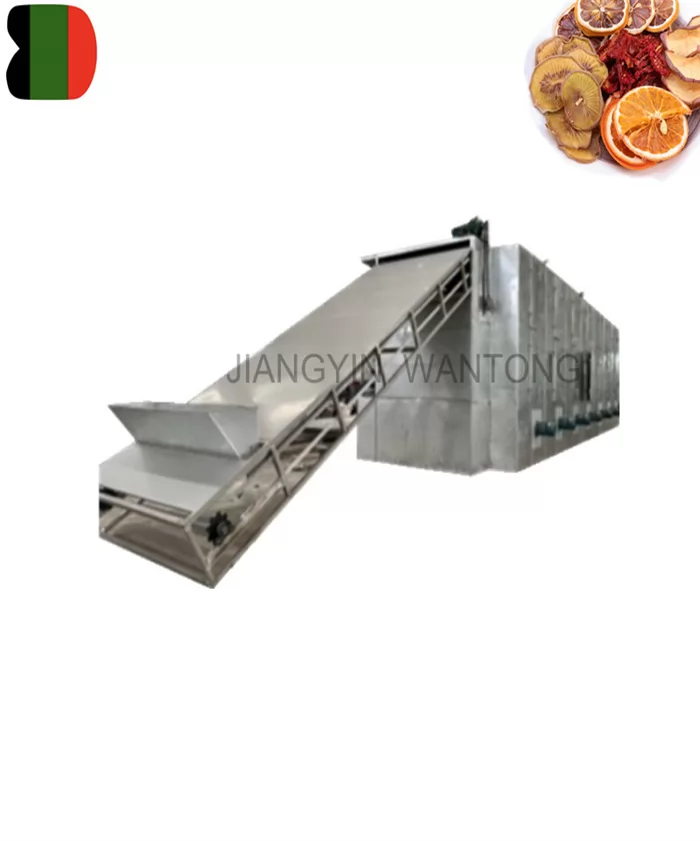

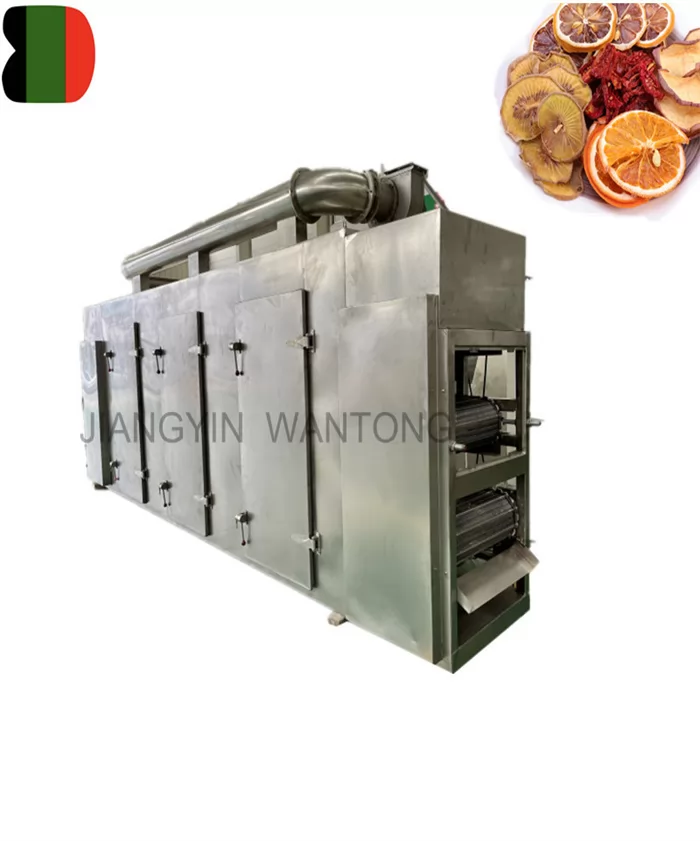

DW mango banana fruit mesh belt dryer drying machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation.
Products Details
Description of DW mango banana fruit mesh belt dryer drying machine
DW mango banana fruit mesh belt dryer drying machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The dw mango banana fruit mesh belt dryer drying machine is suitable for the materials such as dewatering vegetable, herbal medicine of Traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The mango banana fruit mesh belt dryer drying machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & altered cake state paste material should be made into particles or strips before drying process. Mainly Used in Medicine, Foodstuff, Pharmaceutical Industries.
Working Principle of DW mango banana fruit mesh belt dryer drying machine

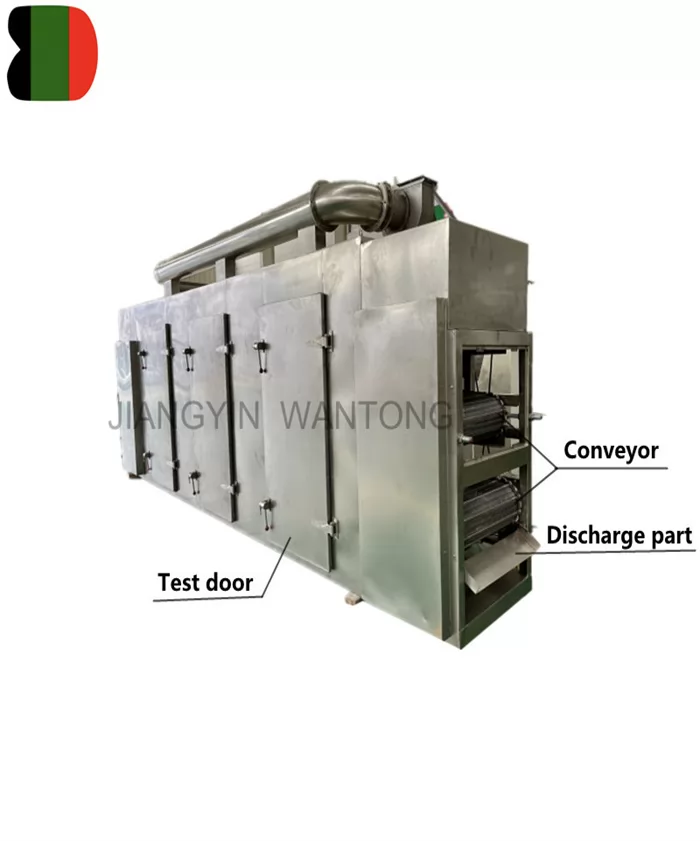

The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer. The mango banana fruit mesh belt dryer drying machine is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands.
Technical Parameters of DW mango banana fruit mesh belt dryer drying machine
| model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 | |
| quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | 10 | |
| width of belt (m) | 1.2 | 1.6 | 2 | |||||
| length of dry section (m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 | |
| thickness of raw material spreading(mm) | 10-80 | |||||||
| operation temperature ( °C ) | 50-140 | |||||||
| steam pressure (MPa) | 0.2-0.8 | |||||||
| steam consumption (kg/h) | 120-300 | 150-375 | 150-400 | 180-500 | 180-500 | 225-600 | 450-1200 | |
| dry time (h) | 0.2-1.2 | 1.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 | |
| dry capacity kg water/h | 60-160 | 80-200 | 85-220 | 100-260 | 100-260 | 120-300 | 240-600 | |
| total equipped power (kw) | 11.4 | 13.6 | 14.6 | 18.7 | 19.7 | 24.5 | 51 | |
| L(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 | 21.56 | |
| overall dimensions | W(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | 2.32 |
| H(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 | |
| weight kg | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 14000 | |
