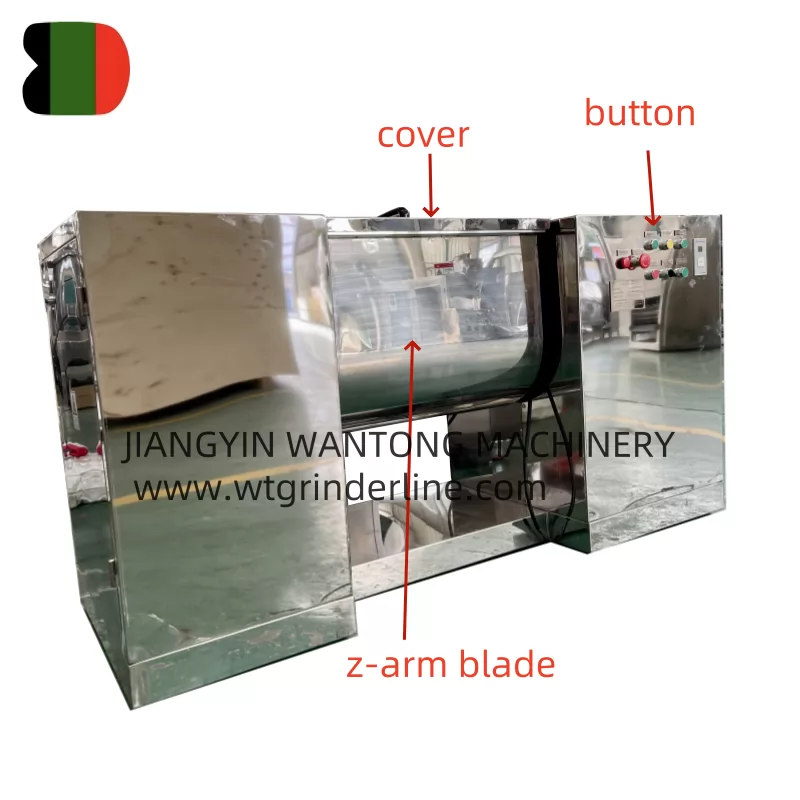

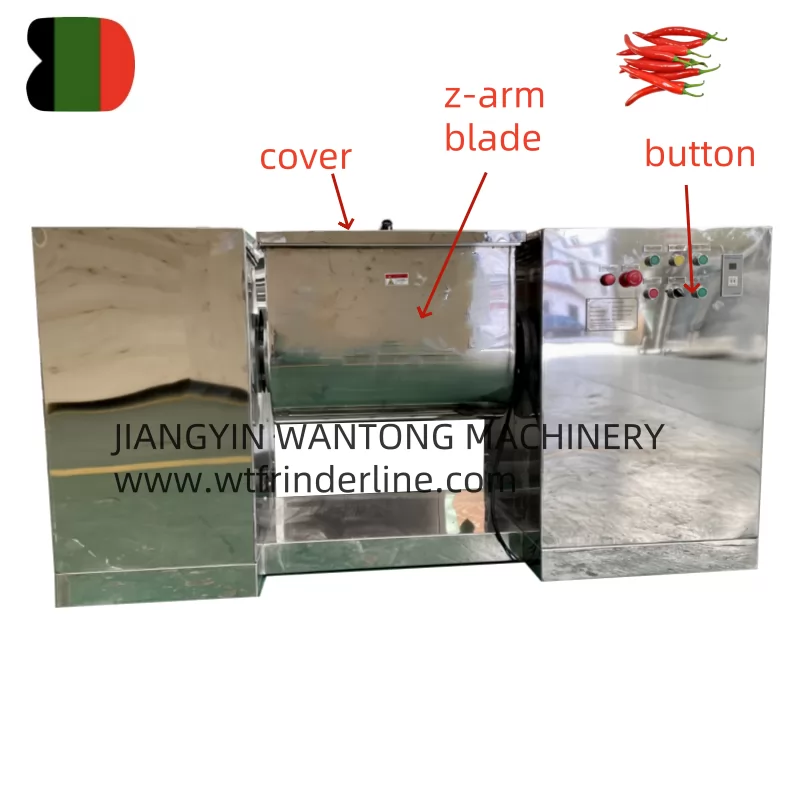

The whole z arm mixer machine is made of stainless stain, its horizontal type mixer. It’s widely used for mixing of powdery or paste material in pharmaceutical, chemical, foodstuff.
Products Details
1.Main Application and Working Principle of CH z arm mixer for pepper
The z arm mixer machine through mechanical rotation to drive S type agitator, promote the materials reciprocating flipping, uniform mixing. When operating using electric control, can set up time of mixing, then automatically stop, so as to improve the mixing quality of each batch.
2.Technical Parameter of CH z arm mixer for pepper
| Type | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| Paddle shape | S-style single paddle | |||||||
| Working volume(L) | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| Mixing speed(r/min) | 24 | |||||||
| Flip angle | <105° | |||||||
| Mixing power(kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Pouring motor power(kw) | 0.37 | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
| Overall size (mm) | 1200×500×950 | 1400×580×1000 | 1800×600×1150 | 2000×650×1200 | 2200×700×1250 | 2280×750×1250 | 2350×800×1300 | 2400×850×1350 |
| Weight(kg) | 280 | 350 | 410 | 450 | 520 | 580 | 680 | 750 |
