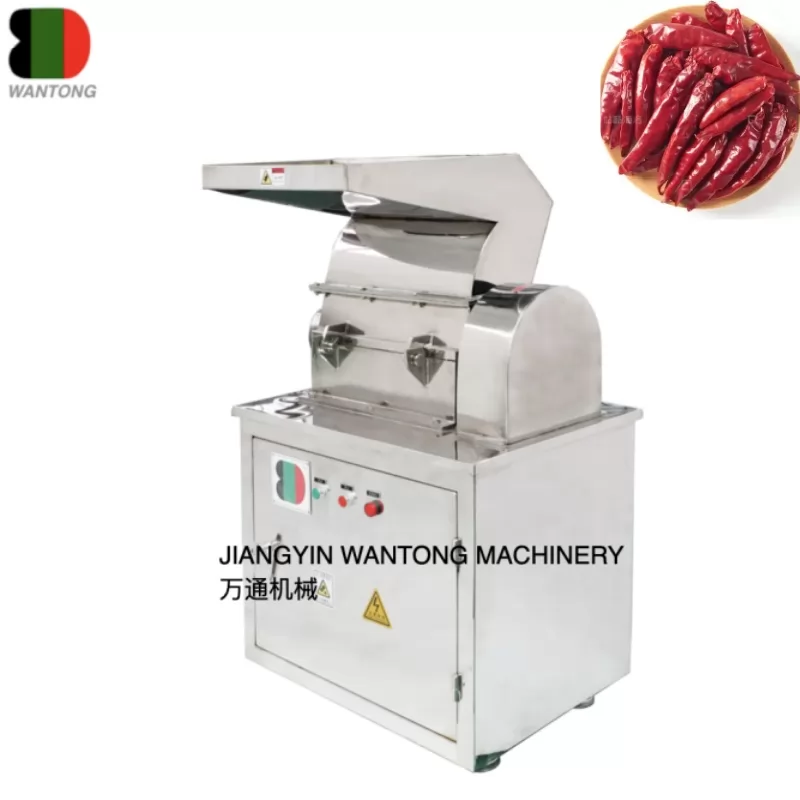

This hot pepper chilli coarse crusher crushing machinery is mainly applicable for the pharmacy, the chemical industry, metallurgy industry, and the foodstuff industry, etc. CSJ hot pepper chilli coarse crusher crushing machine specially grinds the hard and solid materials including the plastic, copper wires, discarded type and so on. The hot pepper chilli coarse crusher crushing machine also can be used as the corollary equipment for fine grinding process.
Products Details
1.GENERAL INTRODUCTION
This hot pepper chilli coarse crusher crushing machine is mainly applicable for the pharmacy, the chemical industry, metallurgy industry, and the foodstuff industry, etc.csj hot pepper chillicoarse crusher crushing machine specially grinds the hard and solid materials including the plastic, copper wires, discarded type and so on. csj hot pepper chilli coarse crusher crushing machine also can be used as the corollary equipment for fine grinding process.
CSJ hot pepper chilli coarse crusher crushing machine is an ideal equipment for rough crushing with high efficiency and overcomes some abuses of the vertical machine, such as the locked moving cutter, the left material in the shell, the low efficiency, etc.

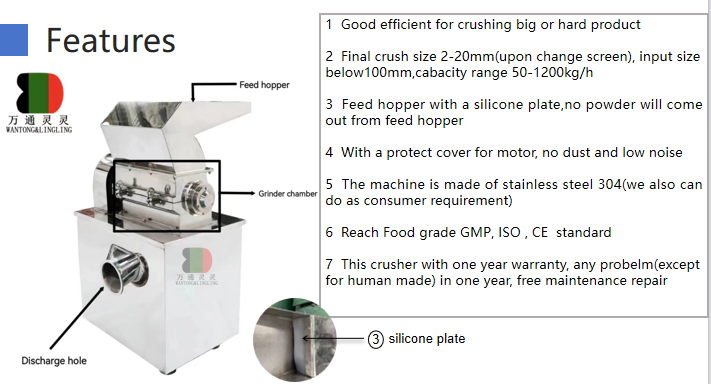

2.FEATURES

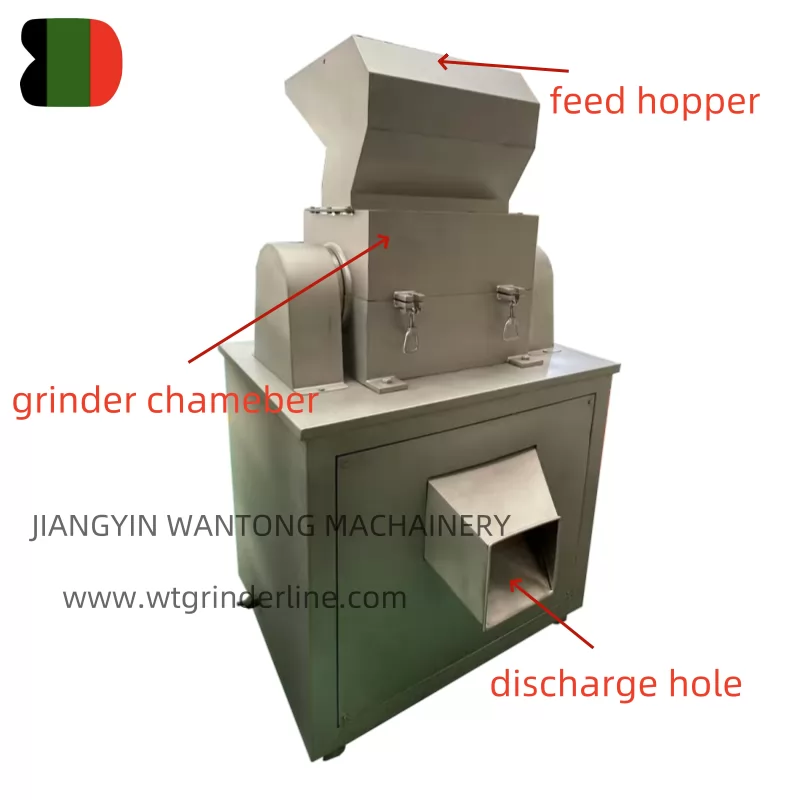

The hot pepper chilli coarse crusher crushing machine for the horizontal crushing structure, the material from the hopper into the crushing chamber, the use of rotating knife and fixed knife impact, shear and get crushed by the rotation of the centrifugal force, the material automatically flow to the exit. The machine is designed according to the "GMP" standard. The whole hot pepper chilli coarse crusher crushing machine is made of stainless steel. The structure is simple, the cleaning is convenient and the noise is low. It is the most ideal equipment in the roughing machine.
3.STRUCTURAL PRINCIPLE

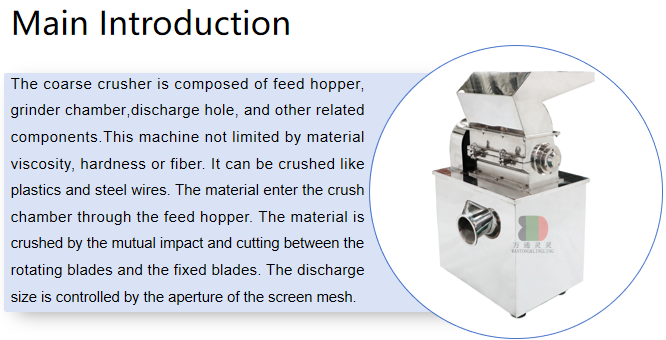

The hot pepper chilli coarse crusher crushing machine adopts horizontal structure, the spindle is supported by two rolling bearing, and installed with two movable frame, each movable frame total installed with 3 moving knives. bearing the lateral have transmission in cabinet are installed in the fixed knife 4. Therefore the dynamic knife with 6 to 4 the fixed knife material shear strength, to smash purposes. In bearing the lateral have drive pulley, there are 4 fixed knives in the cabinet, therefore the materials is effectively grinding by the 6 moving knife and 4 fixed knife , to achieve crushing purposes.
4.TECHNICAL PARAMETERS
| Model | CAPACITY (kg) | Feed size(mm) | Output size(mm) | Total power(kw) | Main speed(r/min) | Dimension(mm) | Weight (kg) |
| CSJ-80 | 20-50 | <50 | 0.5-20 | 1.5 | ~500 | 510*450*980 | 120 |
| CSJ-120 | 50-300 | <100 | 0.5-20 | 3 | 650*700*1200 | 250 | |
| CSJ-200 | 100-400 | <200 | 0.5-20 | 5.5 | 700*800*1200 | 420 | |
| CSJ-400 | 200-600 | <200 | 0.5-20 | 7.5 | 1200*1000*1360 | 800 | |
| CSJ-600 | 300-800 | <200 | 0.5-20 | 22 | 1300*1000*1400 | 1000 | |
| CSJ-1000 | 500-1500 | <200 | 0.5-20 | 37 | 1400*1000*1850 | 1300 |
