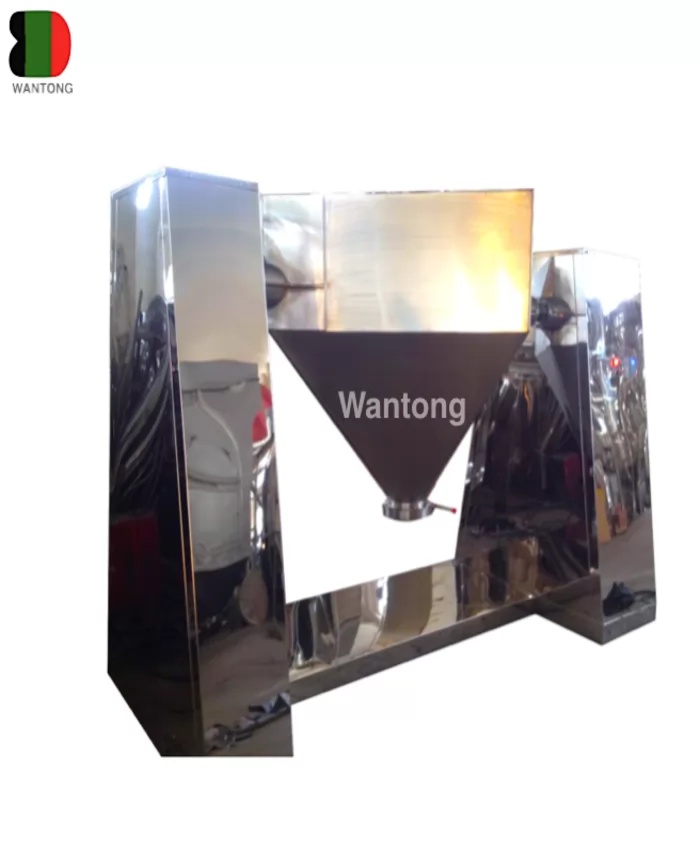

FH Series Square Cone Shape Blender is widely applied in the industry of pharmaceutics,chemical,metallurgy,food and feedstuff.It is new model and mix powder or granules evenly to achieve the best performance.
Products Details
ⅠMain Application
FH Series Square Cone Shape Blender is widely applied in the industry of pharmaceutics,chemical,metallurgy,food and feedstuff.It is new model and mix powder or granules evenly to achieve the best performance.
Ⅱ Features
1.The machine has and advantage design,compact shape, pleasing appearance,99% mixing regularity,and the volume charge coefficient reaches 0.8.
2.Low rotating height,smooth running,reliable performance,easy operation.
3.Polished inside and outside of the barrel brings good characteristics of no blind spot,easy discharging,easy cleaning,no cross contamination.The machine is designed according to GMP standard and made of stainless steel.
Ⅲ Working Principle
Put material into the closed cylinder of square cone shaped mixer.With symmetrical axed and rotor being anangle,the different varieties of materials are moving in three dimensions in the closed cylinder,achieving the best mixing effect
Ⅳ Technical Data
| MODEL | 300 | 500 | 1000 | 1500 | 2000 |
| Cubage of mixing cylinder(L) | 300 | 500 | 1000 | 1500 | 2000 |
| Max. loading cubage(L) | 240 | 400 | 800 | 1200 | 1600 |
| Max. loading weight(mm) | 150 | 250 | 500 | 750 | 1000 |
| Spindle speed(r/min) | 14 | 13 | 12 | 10 | 8 |
| Motor power(kw) | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
| Weight(kg) | 500 | 700 | 1000 | 1500 | 2000 |
| Overall dimension (L*W*H)(mm) | 2010*1240*1800 | 2200*1530*2220 | 2800*2000*2820 | 2930*2300*2950 | 3100*2460*3160 |
The above is our technical data. We can also design and manufacture different varieties upon customer's
