This pill grinding granulator is suitable for food,medicine and chemical industry.It can be uesd for raw material crushing,wet material granulation,dry material whole grain,biscuit crushing recycling and so on.
The size of the discharge particles can be adjusted by the mesh number of the screen, the distance between the rotary knife and the screen, and the speed of the rotary speed.
Products Details
1.Main Application of Grinding Granulator For Pill
Pharmacy:Raw material smaashes,wet material makes a granule,does the table expecting that the entire granule,discrepancy demand,requires the size reclaiming the degree making use of a petter but pushing down to demand to carry out the entire granule .
Food : The broken to pieces reclaim makes of biscuit
Other: Thick shape raw material broken to pieces and entire granule ,from of block raw material broken to pieces and entire granule,packing raw material decomposition.
2.Working Principal of Grinding Granulator For Pill

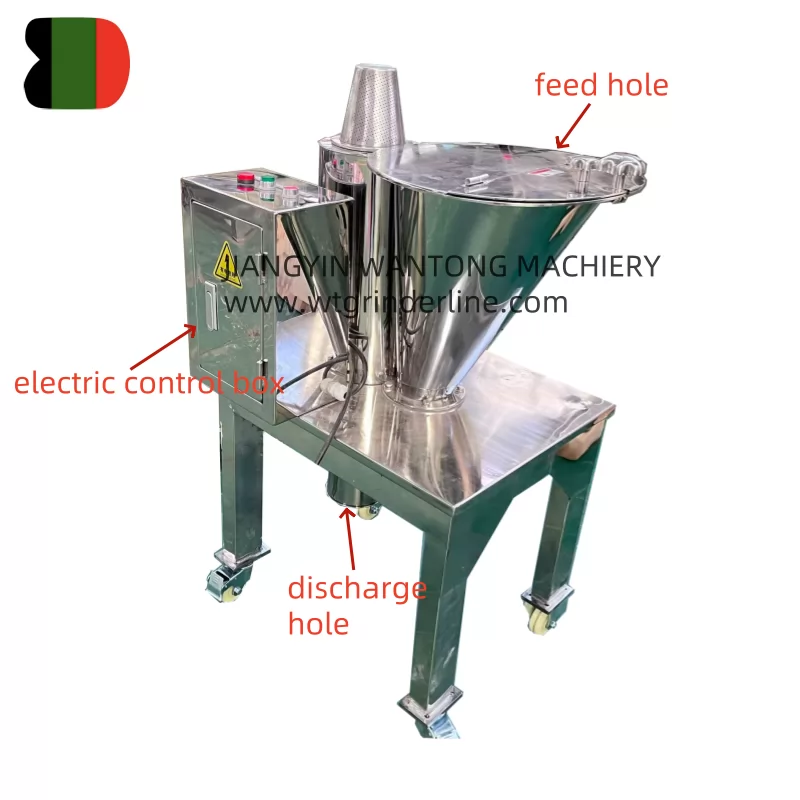

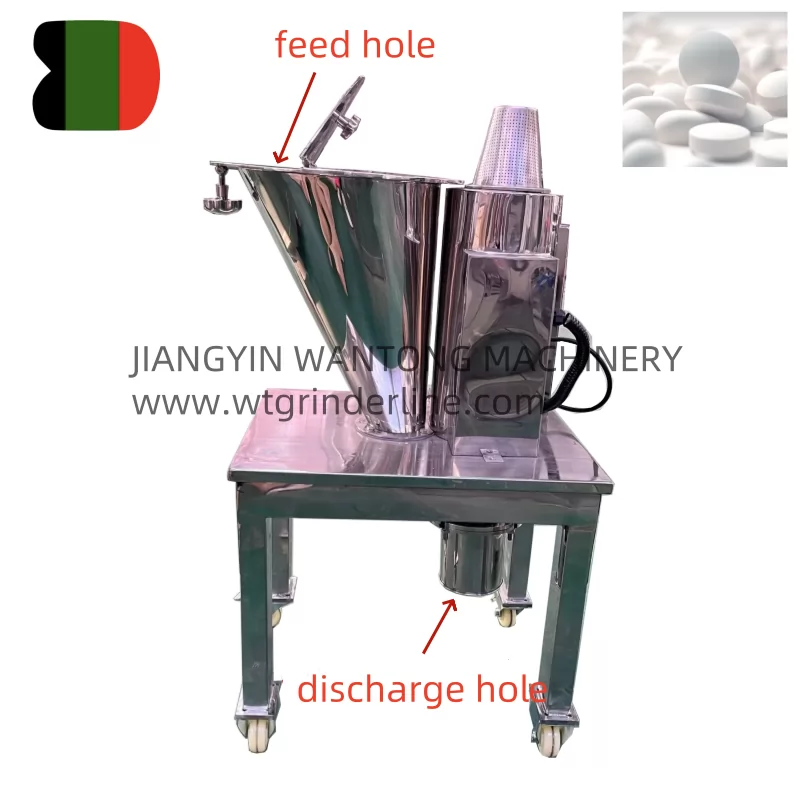

The raw material processing enters the feed mouth queen ,drop-in cone-shape workroon crushing entire granule machine tje knife turning round from revolutiongets the whole stream efect to raw material,apellet is cast aside and with the centrifugal force to screen mesh face,shear an effiect at the same time since knife vertiginate and screen mesh turning roung come into being face to face ,the pettle is smashed becoming the small pettet and is discharged after sieve net hole in the knift turning round and the sieve net ,come broken to pieces granular size,the eye number from screen mesh ,to measure spacing and the speed returning to a ratation rate between the knift and screen mesh turning round .
3.Technical Parameters of Grinding Granulator For Pill
| Item/Model | FZ-150 | FZ-300 | FZ-450 | FZ-700 | FZ-1000 |
| Production capacity(kg/h) | 15-150 | 30-300 | 45-450 | 70-700 | 100-1000 |
| Granularity (mesh) | 6-80 | ||||
| Temperature of transmission seat(mm) | < 30 | ||||
| Regulating speed of speed | Single speed 2800rpm Frequency conversion 300-3600rpm | ||||
| Motor power(kw) | 1.1 | 1.5 | 2.2 | 3 | 5.5 |
| Overall size(L*W*H)(mm) | 850×480×1400 | 810×445×1345 | 920×445×1430 | 1000×500×1530 | 1100×560×1785 |
| Height from discharging gate to ground(mm) | 650 | 650 | 690 | 690 | 720 |
The above is our technical data. We can also design and manufacture different standards upon customer's request.
