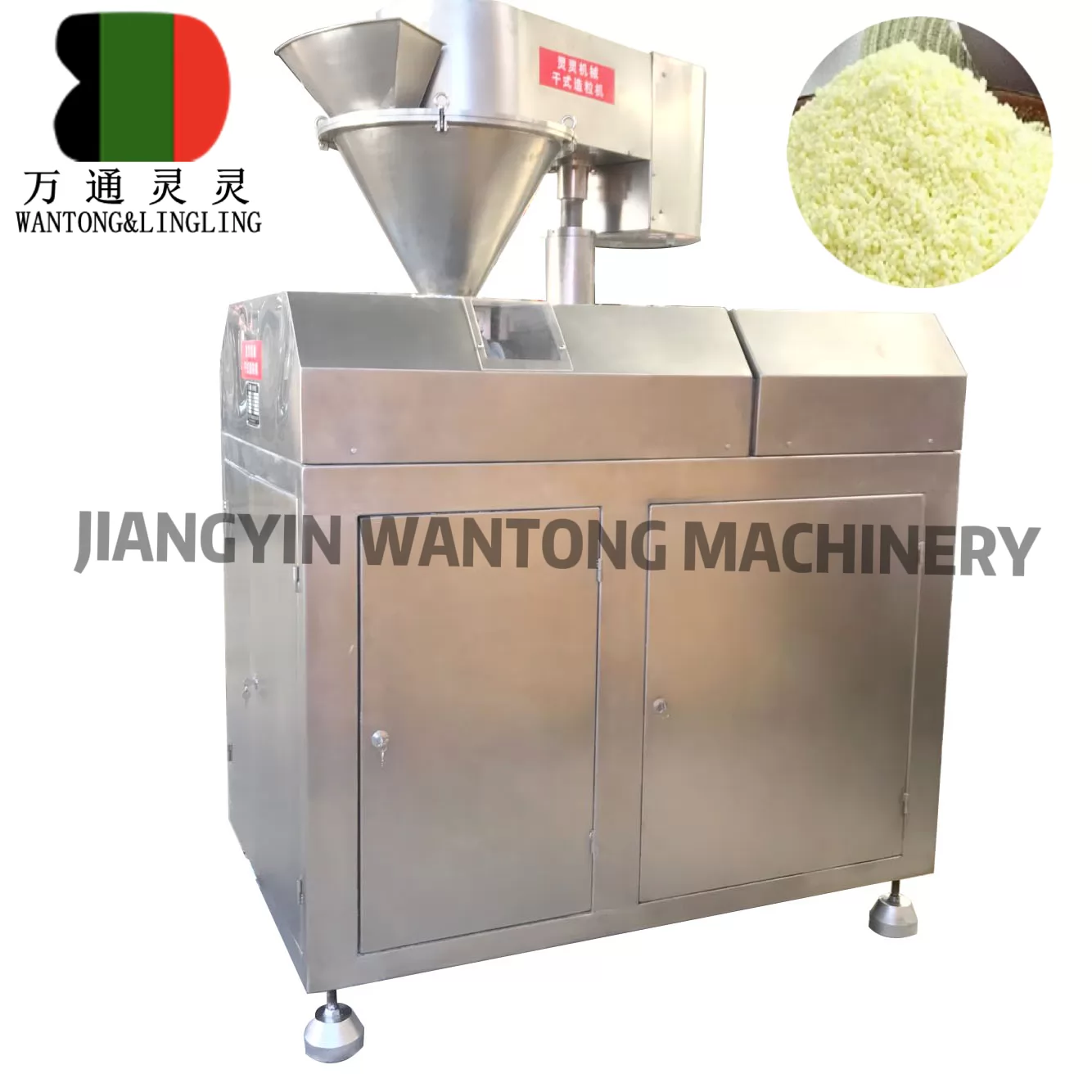

GK dry granulator is a new equipment to make granules directly from the target material using the crystal water in the material. The finished granules can be made to troches or capsules. GK dry granulator adopts the electromagnetic timing and features the simple structure, stable capability, easy cleaning, convenient maintenance.
Products Details
1.MAIN INTRODUCTION of GK dry powder granule making machine
GK dry powder granule making machine is a new equipment to make granules directly from the target material by using the crystal water in the material. The finished granules can be made to troches. GK dry powder granule making machine adopts the electromagnetic timing and features the simple structure, stable capability, easy cleaning, easy maintenance.
2.MAIN APPLICATION of GK dry powder granule making machine
Medicine: pellet granule, capsule filling granule;
Food: food manufacturing particles, seasoning particles, etc..
Plastic: all kinds of plastic molding particles;
Chemical: catalyst, pigment, detergent and other particles.
The mechanism of the particles can be compressed agent, do granules, capsules, etc.. GK dry powder granule making machine is mainly used in pharmaceutical, food, chemical and other industries. The method is especially suitable for granulating materials which can not be solved by wet process.
3.TECHNICAL DATA of GK dry powder granule making machine
| MODEL | 80 | 100 | 120 | 200 |
| CAPACITY（Kg/h） | 20-200 | 50-400 | 60-500 | 100-800 |
| ROLL SIZE（mm） | 200×80 | 200×100 | 200×120 | 250×200 |
| Roll Max Pressure（T） | 10×2 | 10×2 | 15×2 | 25×2 |
| ROLL SPEED（rpm） | 2-20（adjustable） | |||
| FEEDING SPEED（rpm） | 6-60（adjustable） | |||
| Roll Drive Motor（Kw） | 4 | 7.5 | 11 | 15 |
| Feed Drive Motor（Kw） | 1.1 | 2.2 | 2.2 | 3 |
| Granule Drive Motor（Kw） | 1.1 | 2.2 | 2.2 | 3 |
| Oil Pump Drive Motor（Kw） | 0.75 | 1.1 | 1.1 | 2.2 |
| MAX WORKING PRESSURE OF HYDRAULIC（Mpa） | 20 | 25 | 30 | 50 |
| Roller And Feed Speed Regulation Type | Electromagnetic speed/variable frequency speed control | |||
