This dry granulator machine is suitable for granulation in pharmaceutical, food, chemical and other industries.
This dry granulator for pigment can be made into granule compressible tablets, granules, capsules, etc., especially suitable for granulation of materials that can not be solved by wet method.
Products Details

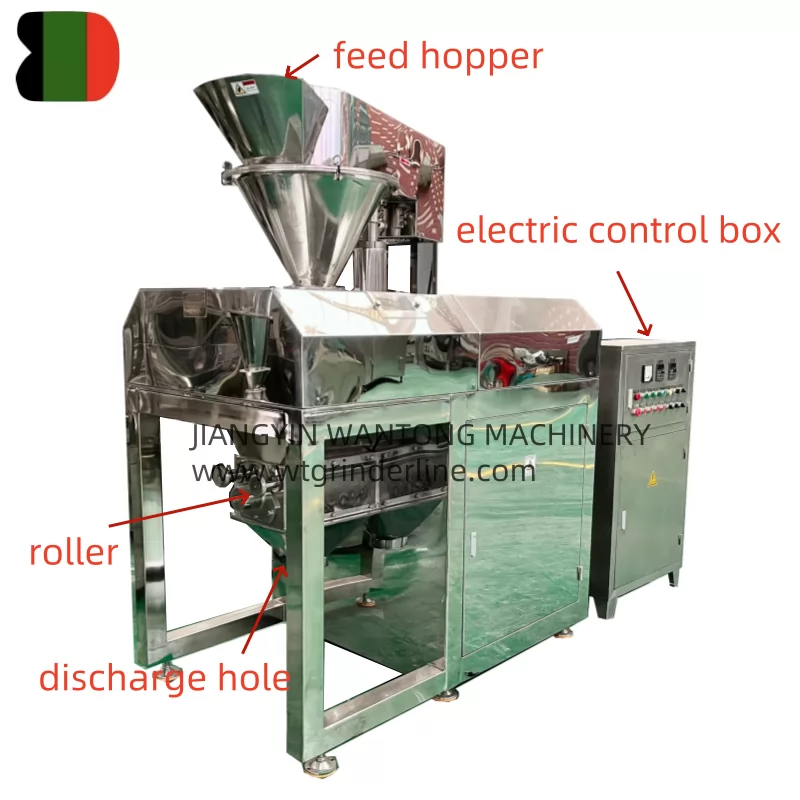

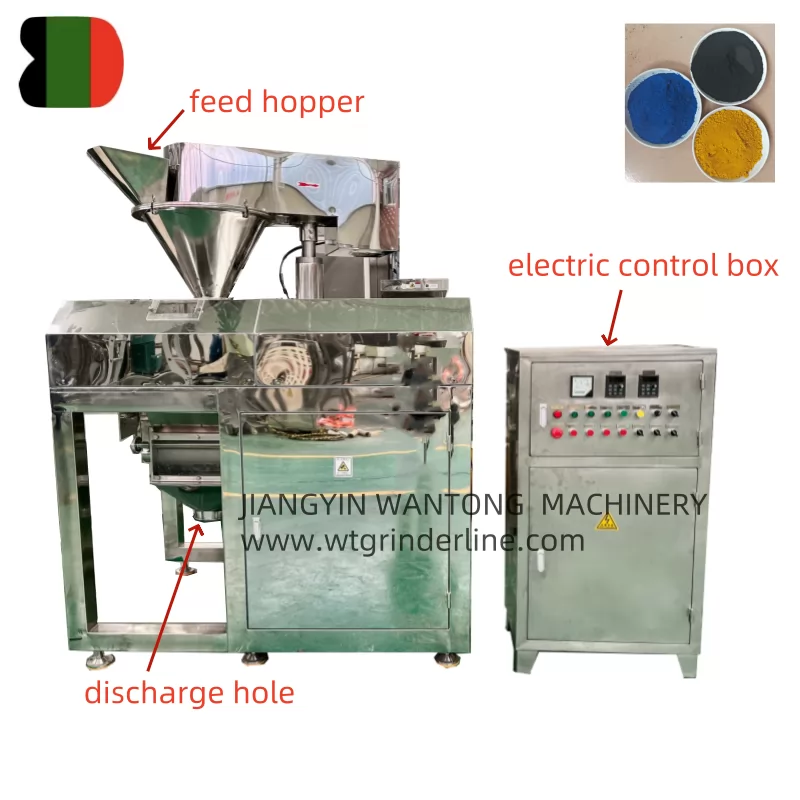

1.MAIN INTRODUCTION of GK dry granulator for pigment
This dry granulator machine is a new equipment to make granules directly from the target material by using the crystal water in the material. The finished granules can be made to troches. GK dryer granulator for pigment adopts the electromagnetic timing and features the simple structure, stable capability, easy cleaning, easy maintenance.
2.TECHNICAL DATA of dry granulator for pigment
| MODEL | 80 | 100 | 120 | 200 |
| CAPACITY（Kg/h） | 20-200 | 50-400 | 60-500 | 100-800 |
| ROLL SIZE（mm） | 200×80 | 200×100 | 200×120 | 250×200 |
| Roll Max Pressure（T） | 10×2 | 10×2 | 15×2 | 25×2 |
| ROLL SPEED（rpm） | 2-20（adjustable） | |||
| FEEDING SPEED（rpm） | 6-60（adjustable） | |||
| Roll Drive Motor（Kw） | 4 | 7.5 | 11 | 15 |
| Feed Drive Motor（Kw） | 1.1 | 2.2 | 2.2 | 3 |
| Granule Drive Motor（Kw） | 1.1 | 2.2 | 2.2 | 3 |
| Oil Pump Drive Motor（Kw） | 0.75 | 1.1 | 1.1 | 2.2 |
| MAX WORKING PRESSURE OF HYDRAULIC（Mpa） | 20 | 25 | 30 | 50 |
| Roller And Feed Speed Regulation Type | Electromagnetic speed/variable frequency speed control | |||
