A Hot Air Fruit Drying Machine is designed to efficiently dry fruits and other food products by circulating hot air at controlled temperatures. This method helps in preserving fruits while maintaining their nutritional content, flavor, and quality. Hot air drying is one of the most popular and cost-effective methods of drying fruits for commercial production, ensuring long shelf life without the need for chemical preservatives.
Products Details

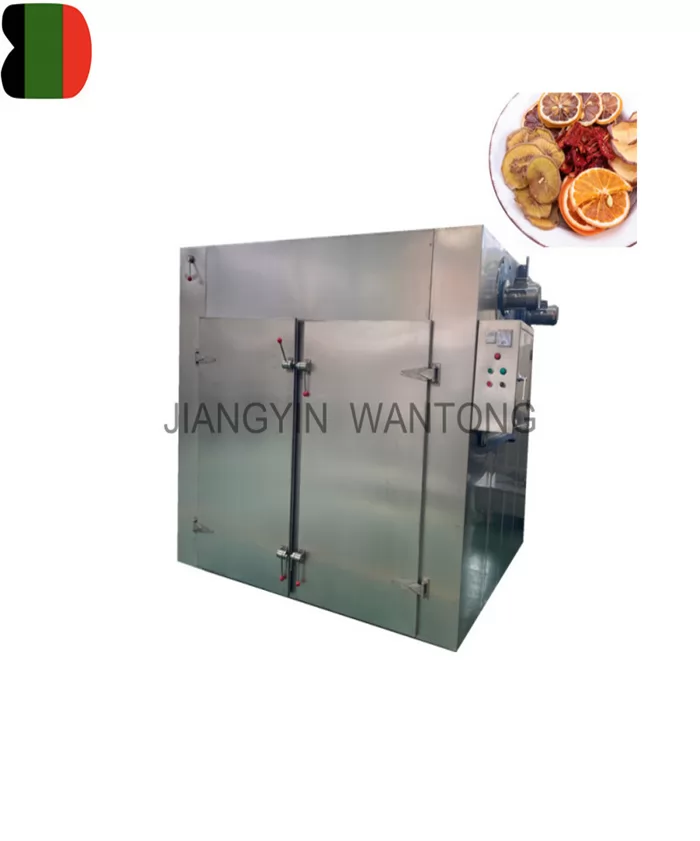

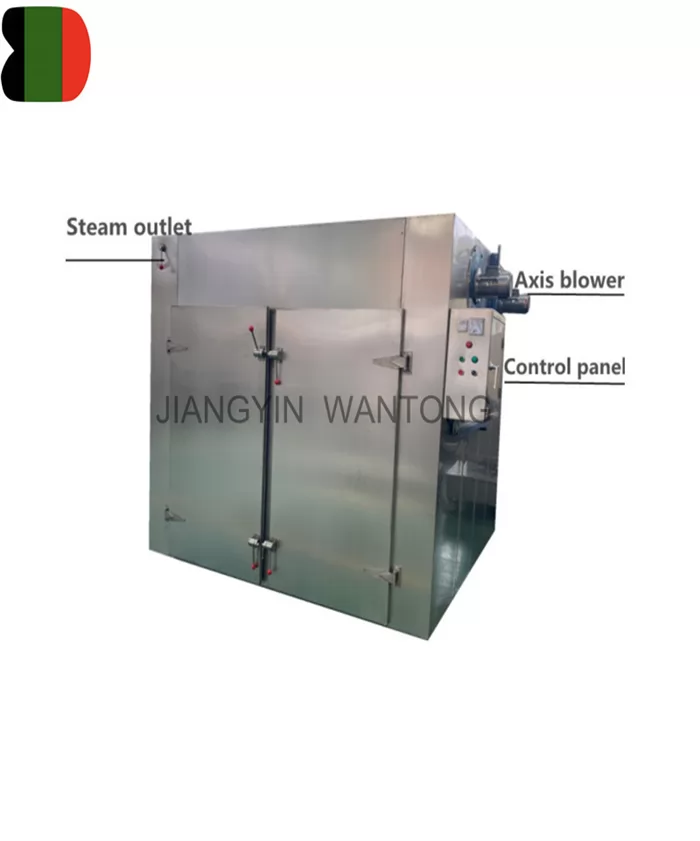

Our company initiates CT-C Hot Air apple fruit tray dryer drying machine oven and reaches the international level after several updates. This hot air apple fruit tray dryer drying machine overcomes the disadvantages of long drying times and great heat loss. CT hot air apple fruit tray dryer drying machine uses a steam heater or electrical heating organ to create heat and change heat through convective wind to heat the material.
Meanwhile, it renews fresh air and expels wet air. The heat wind can cycle in the oven, so it saves the source. The hot air apple fruit tray dryer drying machine oven can be used to heat and expel wet air in the pharmaceutical industry, chemical industry, foodstuff industry, light industry, heavy industry, etc.
For pharmaceutical, chemical, food, agricultural and sideline products, water products, light industry, heavy industry, and other industries of heating and curing, drying and dehydration. Such as raw materials, raw materials, Chinese herbal medicine, extract, powder, granules, powder, pills, water bottles, pigment, dyestuff, dehydration vegetables, dried fruit and melons, sausage, plastic resin, electric elements, paint, etc
CT hot air apple fruit tray dryer drying machine can used as an industrial fruit and food dehydrator machine.
For drying fruits and vegetables, mushrooms, chili, spice, turmeric, herbal material, etc
Note: we also can design other models upon the client's request.
| Model | Evaporated area(m²) | Effective volume((m³) | Capacity(kg/batch) | Radiator Area(m²) | Steam (kg/h) | Electric Power (kW) | FanVolume (m³/h) | Fan Power (kW) | Inner Temp. Difference(℃) | Overall(mm) | CarNo. | TrayNo. | Weight(kg) |
| CT-C-0 | 7.1 | 1.3 | 60 | 15 | 15 | 6-9 | 4510 | 0.45 | ±1 | 1380×1200×2000 | 1 | 24 | 820 |
| CT-C-Ⅰ | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 4510 | 0.45 | ±2 | 2360×1200×2000 | 2 | 48 | 1580 |
| CT-C-Ⅱ | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45 ×2 | ±2 | 2260×2200×2000 | 4 | 96 | 1800 |
| CT-C-Ⅲ | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 | ±2 | 3240 ×2200 ×2000 | 6 | 144 | 2210 |
| CT-C-IV | 56.5 | 10.3 | 500 | 96 | 80 | 60 | 18040 | 0.45×4 | ±2 | 4280 ×2200×2770 | 8 | 192 | 2800 |
> Uniform Air Circulation: The machine uses a built-in fan system to ensure uniform hot air circulation throughout the drying chamber, allowing for even drying of fruits. This helps avoid any under-dried or over-dried sections.
> Adjustable Temperature Control: It is equipped with a temperature control system that allows precise adjustment, typically ranging from 30°C to 90°C. This feature is essential for different types of fruits, as some require lower temperatures to preserve their nutrients.
> Energy Efficiency: Modern hot air fruit drying machines are designed with energy-saving mechanisms, ensuring that the machine runs efficiently and reduces energy consumption, which lowers operational costs.
> Multiple Trays or Shelves: The machine typically comes with several trays or shelves where fruits are placed for drying. These trays are made from food-grade materials like stainless steel, ensuring hygiene and durability.
> Built-in Timer: A timer function allows operators to set specific drying durations, depending on the type of fruit and the moisture content. This feature helps prevent over-drying and ensures optimal texture and flavor retention.
> User-friendly Interface: The machine’s controls are simple to operate, with digital or analog panels for setting temperature, time, and airflow speed.
Durable Construction: Made with corrosion-resistant materials like stainless steel, the hot air drying machine is built to last and handle long-term use, especially in industrial settings.
A Hot Air Fruit Drying Machine is an essential tool for businesses looking to produce high-quality dried fruits in a cost-effective and energy-efficient way. Whether you're a fruit farmer, food processor, or snack manufacturer, investing in a reliable drying machine can improve your production efficiency and product quality. It not only helps preserve fruits but also opens opportunities for producing healthy, dried snacks for the growing market of health-conscious consumers. Contact us!
