CT66 mushroom dryer machine manufacturer

CT-C mushroom drying machine is initiated by our company and reaches the international level after several updates. This hot air pineapple fruit tray dryer drying machine overcomes the disadvantages of long drying time, great heat loss. CT hot air pineapple fruit tray dryer drying machine uses the steam heater or electrical heating organ to create heat and change heat through convective wind to heat up the material.

Products Details

1.DESCRIPTION of CT mushroom drying machine

CT-C Hot Air pineapple fuit tray dryer drying machine oven is initiated by our company and reaches the international level after several updates. This mushroom drying machine overcomes the disadvantages of long drying time, great heat loss. CT mushroom drying machine uses the steam heater or electrical heating organ to create heat and change heat through convective wind to heat up the material.

Meanwhile it renews fresh air and expels wet air. The heat wind can cycle in the oven, so it saves the source. The mushroom drying machine oven can be used to heating and expel wet air in pharmaceutical industry, chemical industry, foodstuff industry, light industry, heavy industry, etc.

2.MAIN APPLICATION of CT mushroom drying machine

For pharmaceutical, chemical, food, agricultural and sideline products, water products, light industry, heavy industry and other industries of the heating and curing, drying and dehydration. Such as raw materials, raw materials, Chinese mushroom medicine, extract, powder, granules, powder, pills, water bottles, pigment, dyestuff, dehydration vegetable, dried fruit and melons, sausage, plastic resin, electric elements, paint etc

CT mushroom drying machine can used as industrial fruit and food dehydrator dehydrating machine. for drying fruits and vegetables, mushroom, chili, spice, turmeric, mushroom material etc


3.TECHNICAL PARAMETERS of CT mushroom drying machine

Note: we also can design other model upon client's request.


ModelEvaporated area()Effective volume((m³)Capacity(kg/batch)Radiator Area(m²)Steam (kg/h)Electric Power (kw)FanVolume (/h)Fan Power (kw)Inner Temp. Difference(℃)Overall(mm)CarNo.TrayNo.Weight(kg)
CT-C-07.11.36015156-945100.45±11380×1200×2000124820
CT-C-Ⅰ14.12.612023201545100.45±22360×1200×20002481580
CT-C-Ⅱ28.34.924048403090200.45 ×2±22260×2200×20004961800
CT-C-Ⅲ42.47.4360726045135300.45×3±23240 ×2200 ×200061442210
CT-C-IV56.510.3500968060180400.45×4±24280 ×2200×277081922800



Products Picture

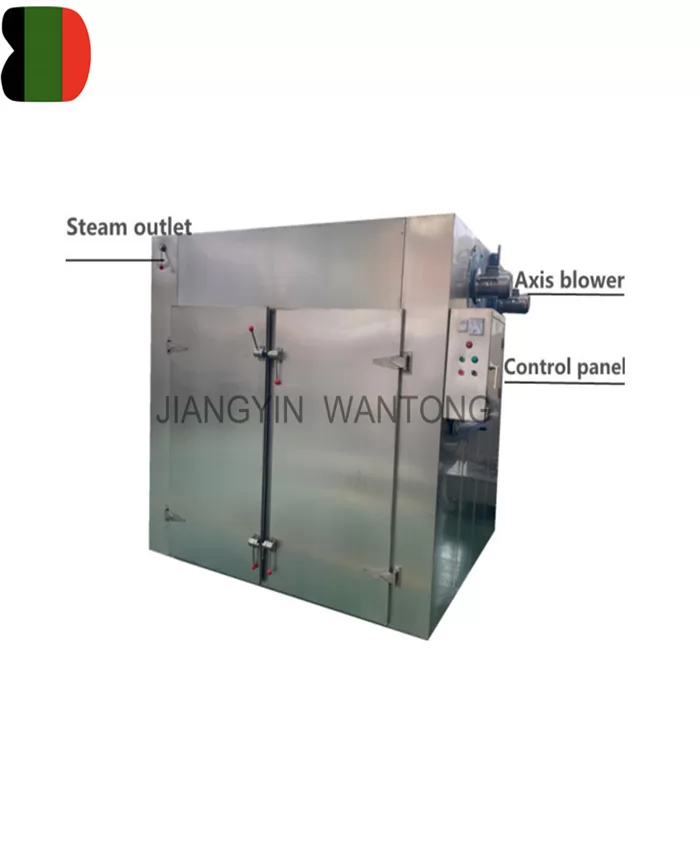

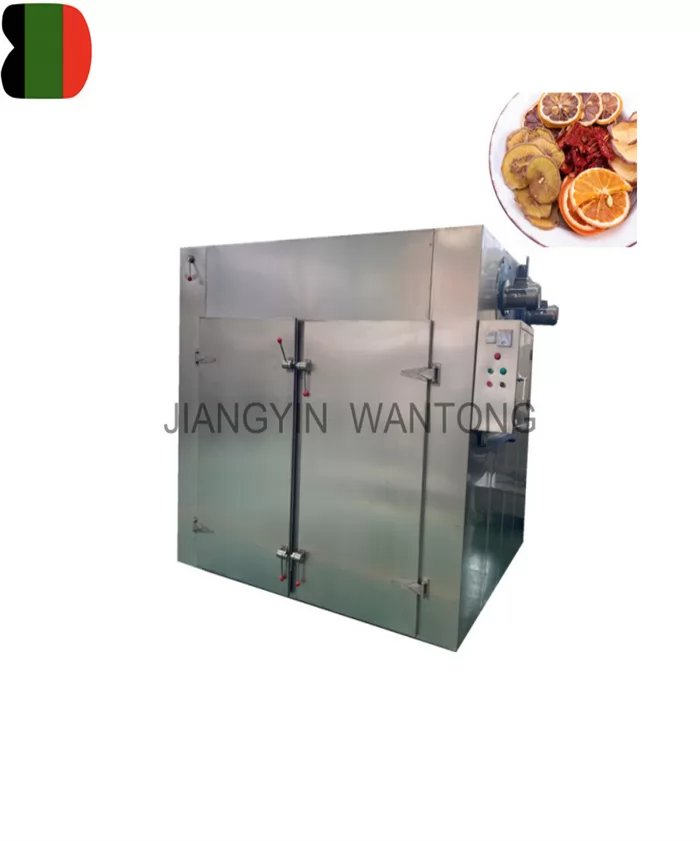

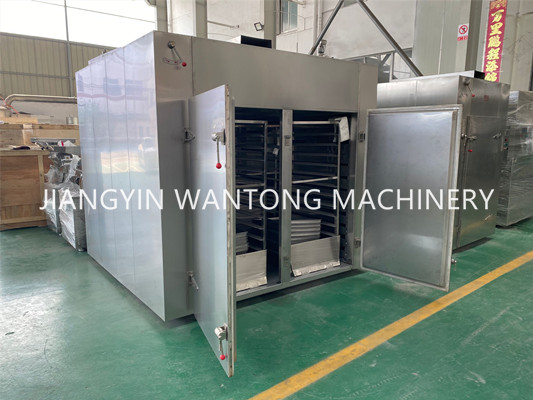

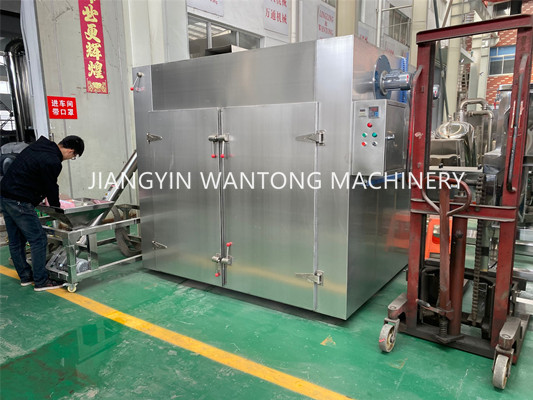

CT66 hot air apple fruit tray dryer drying machine

CT66 hot air apple fruit tray dryer drying machine
