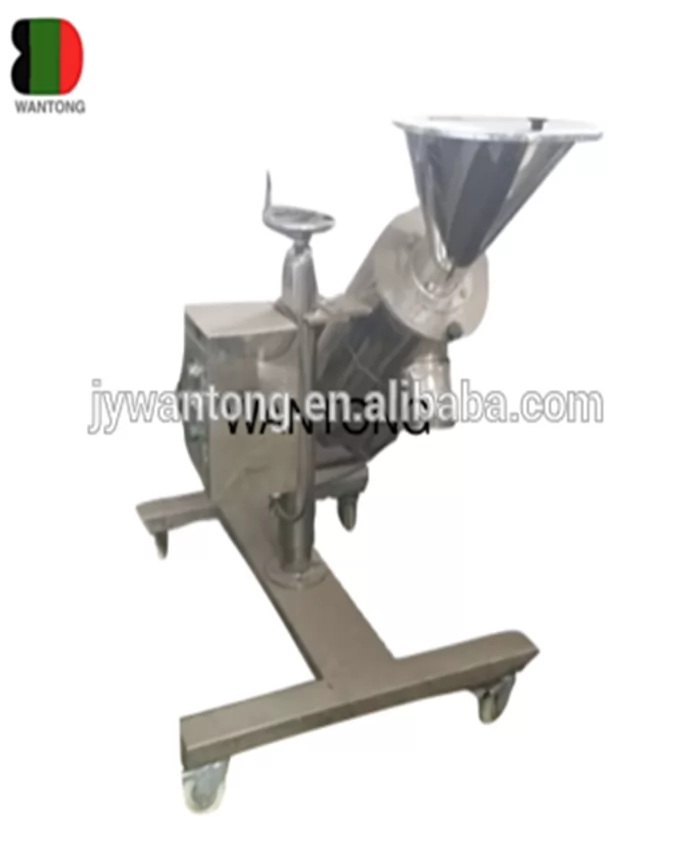

The machine is widely used in pharmaceutical, chemical and foodstuff industries with good effect.
The granulator, equipped with reasonable filter net and shankpiece, can smash those easy dispersed block materials and screen them carefully via the screen with special mesh under centrifugal force. The size of granules can be acquired by changing the screens. The machine can replace the swing granulator.
Products Details
1.Main Uses:
The machine is widely used in pharmaceutical, chemical and foodstuff industries with good effect.
The granulator, equipped with reasonable filter net and shankpiece, can smash those easy dispersed block materials and screen them carefully via the screen with special mesh under centrifugal force. The size of granules can be acquired by changing the screens. The machine can replace the swing granulator.
2.Characteristics:
The machine is suitable for the smashing and arranging of granules in pharmaceutical, chemical pigment and fodder industries. The shape and specification of granules are varied from different process and equipment. Those granules can be formed into ones wiht almost same size and specification after treated through the machine.
The machine is made of stainless steel with surface polished, easy to dismantle and assemble as well as clean.
3.Technical Parameters:
| MODEL | MODEL 80 | MODEL 120 | MODEL 160 | MODEL 200 |
| Rotor length mm | 185 | 185 | 185 | 185 |
| Filter mesh diameter mm | 1-8 | |||
| Capacity kg/h | 50-100 | 100-200 | 150-300 | 200-400 |
| Motor power kw | 0.45 or 0.55 | 0.85 or 1.1 | 1.3or 1.8 | 1.8 or 2.4 |
| Speed range r/pm | Single speed 2800 orfrequency changing speed control300-3600 | |||
| Overall size L×W×H mm | 650×450×1000 | 1000×800×1200 | 1060×850×1350 | 1100×1000×1500 |
