What Is a V-Stirrer And Why Should I Use One?

The main mixing mechanism of a V Type Powder Mixer is diffusion. The raw material placed in the mixer is fixed to the inlet hole of the V-shell, and then both the drum and the V-shell are inverted 180 degrees by the mixer. This allows the powder to be introduced into the V-shell by gravity. Diffusive mixing occurs when the particles are distributed over a newly developed interface, which results in a homogeneous product, and the mixer is ideally suited for low-shear tumbling mixing of powders and particles.

The V-shaped mixer basically consists of two hollow cylindrical shells joined at an angle of 75° to 90°.

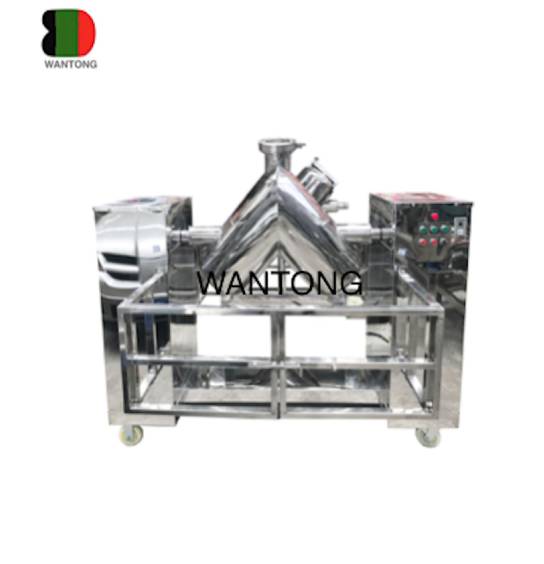

V-Mixer

The mixer housing sits on a pivot axis that allows it to rotate and as the V-Mixer tumbles, the material continually splits and recombines and mixing occurs as the material falls randomly into the container. The repetitive converging motion of the materials, friction and straight edges lead to best practice and uniform mixing, which has been supported by the diffusion process.

Main technical information about V-mixers.

Capacity: typically available from 100 L to 6000 L

Operating pressure: 0 to 6 Barg.

Operating temperature: room temperature

V-mixer applications

Pharmaceutics

Dyes/Dye Intermediates

Inorganic chemicals

Temperature sensitive materials

Plastic products

Agrochemicals

Organic chemicals

Advantages of V-Blender

Minimal wear of product media

Conical vessel shape is ideal for discharge and cleaning operations

No scrapers, plows, spoons or blades to clog the material and prevent uniform mixing

Loading and unloading are easy and safe to do

The shape of the mixer body allows for almost complete discharge of the product material

Eliminates shaft protrusions and reduces product contamination

V-shaped agitator is easy to clean

The company also provides Double Cone Mixer, please feel free to contact us if you need
