What Are the Possible Failures of Crusher? How to Solve?

The crusher uses the relative movement between the moving teeth and fixed teeth to crush the material inside the crushing cavity, and the moving teeth and the static teeth of high-speed collision, knocking, friction, as well as collision between the material, knocking and friction, so as to obtain crushing, crushed material through the screen into the crushing cavity below the collection barrel or bag. Generally use cloth bag material, the dust remains inside the bag, while the air and a small amount of very fine dust through the gaps in the bag, was discharged outside the bag.

Crusher clogging is one of the common failures in the use of the crusher, there may be problems with the design of the machine, but more often due to improper use of the operation caused by. WANTONG provides you with the solution.

Feeding speed is too fast

In the process of feeding, always pay attention to the current meter pointer deflection angle is large, if more than the rated current, indicating that the motor overload, long time overload, will burn the motor. This situation should immediately reduce or close the material door, also can change the way of feeding, by increasing the feeder to control the amount of feeding. Feeder has two kinds of manual and automatic, users should choose the right feeder according to the actual situation. The current when the crusher is working is generally controlled at about 85% of the rated current.

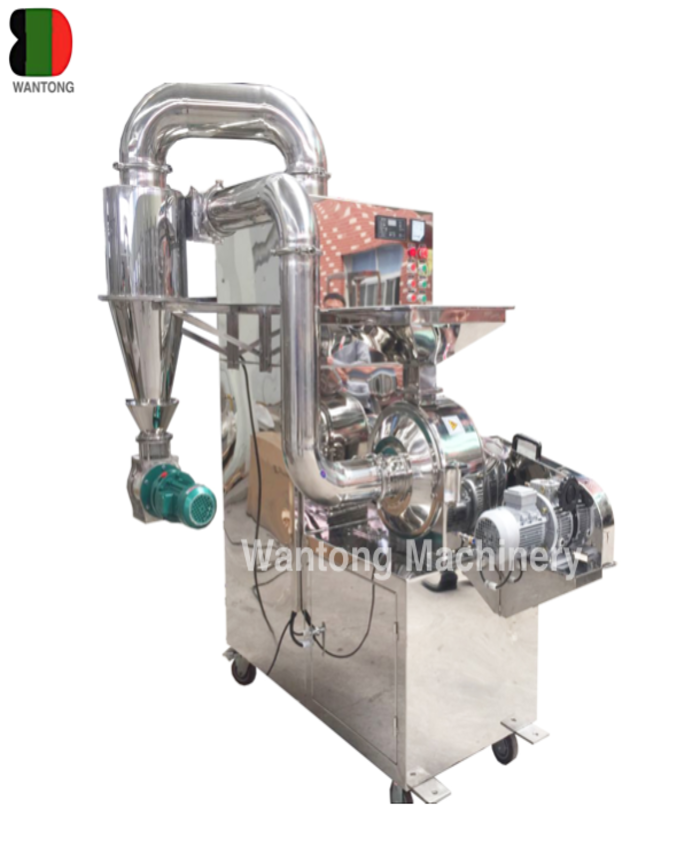

WFJ Ultra Fine Dates Tea herbal Leaf Powder Making Grinder Machine

Discharge pipe is not smooth

Feeding too fast, will make the crusher wind blockage; improperly matched with the conveying equipment will cause the discharge pipeline wind weakening or no wind after blockage; bag dust type products, if you do not pay attention to the regular cleaning of the bag, but also easy to cause the induced draft fan wind weakening or no wind after blockage. After finding out the fault, you should first clear through the sending mouth change mismatched conveying equipment, adjust the amount of incoming material, so that the normal operation of the equipment.

Aging tooth claw or hammer piece

Should be regularly updated broken and seriously aging teeth and claws or hammer blades, to maintain the good working condition of the crusher, and regularly check the screen. Crushed material moisture content is too high will make the crusher clogged, so the crushed material moisture content should be less than 14%, which can improve production efficiency, but also so that the crusher does not clog, enhance the reliability of the crusher work.

The crusher machine consists of three parts: the main machine, auxiliary machine and electric control box. With the characteristics of wind selection, no sieve without net, processing material size uniformity. Production process is continuous, the machine can undertake the crushing of chemical, food, pharmaceutical, medicine, cosmetics, plastics, dyes, resins, additives, food and other materials. The machine is suitable for the following materials: tea, sugar, ginger, leaves, spicy wood, vanilla, turmeric, pepper, mushrooms, cocoa, gypsum, dried fruits, dates, gum Arabic, etc.

If you need to buy crusher and grinder, please contact WANTONG, we will reply you soon.
