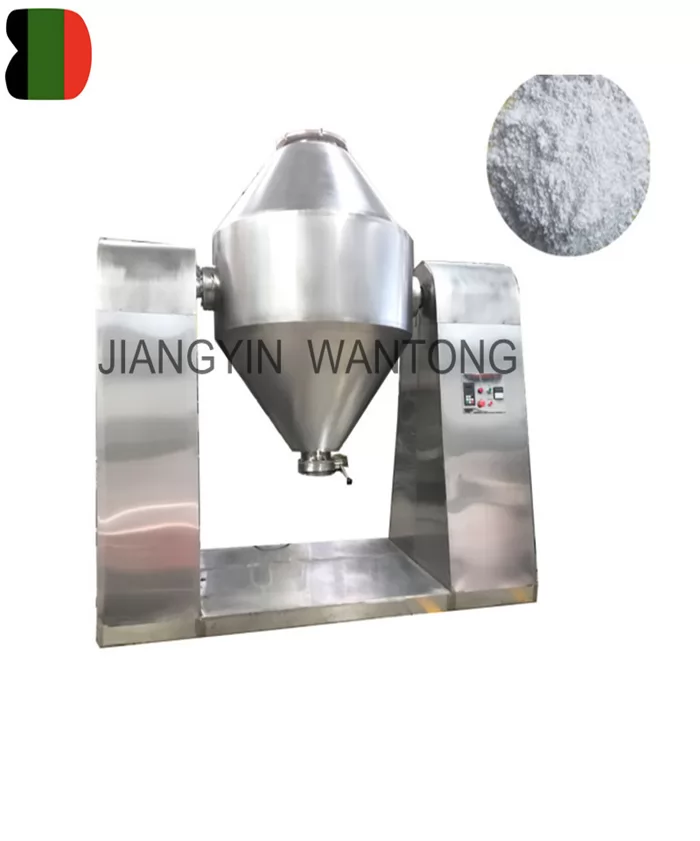

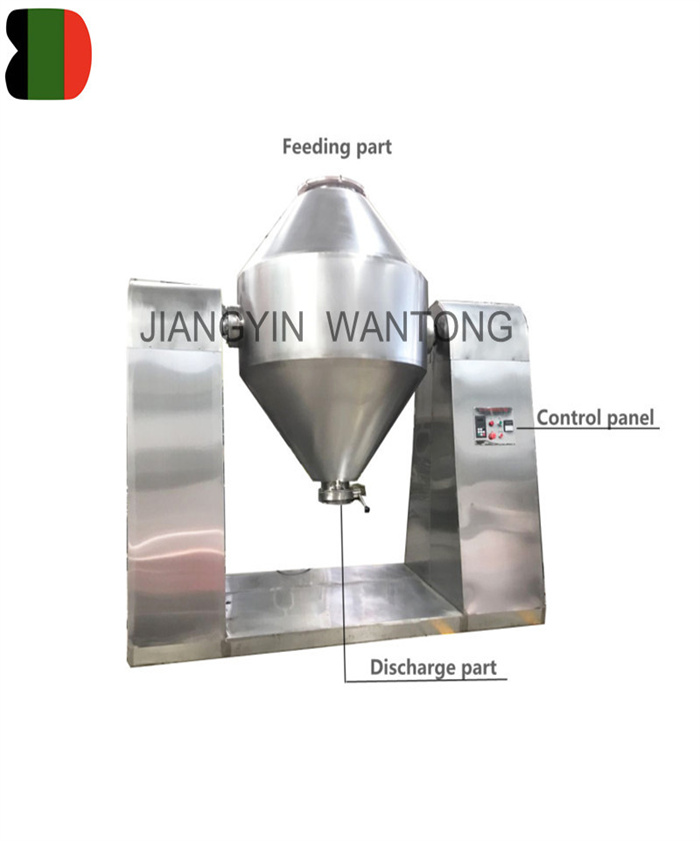

The SZG sea salt food rotary double cone vacuum dryer can mix and dry the powder, crystal material and granule material in chemical industry, pharmaceutical industry, foodstuff industry, metallurgy industry, construction, etc. SZG sea salt food rotary double cone vacuum dryer can also be used for the concentration of the liquor, disinfection and germicide of the material. The moisture of the material can be dried to be lower than 0.5%.
Watch the test video,pls click the following link:
Products Details
1.Main Application of SZG sea salt food rotary double cone vacuum dryer
The sea salt food rotary double cone vacuum dryer drying machine can mix and dry the powder, crystal material and granule material in chemical industry, pharmaceutical industry, foodstuff industry, metallurgy industry, construction, etc. SZG sea salt food rotary double cone vacuum dryer drying machine can also be used for the concentration of the liquor, disinfection and germicide of the material. The moisture of the material can be dried to be lower than 0.5%.
The sea salt food rotary double cone vacuum dryer drying machine can save energy sources with low labor and high efficiency, and it only needs 2-4 hours to dry the material (<100% humidity).
This sea salt food rotary double cone vacuum dryer drying machine is suitable for chemical, pharmaceutical, food and other industries powder, granular and fibrous material concentration, mixing, drying and low moisture drying materials (such as biochemical products, etc.), more suitable for easy oxidation, volatile, heat sensitive strong stimulation, Toxic materials and materials that are not allowed to break the crystals.
2. Feature of SZG sea salt food rotary double cone vacuum dryer
1. Oil heating, the use of automatic temperature control, you can dry biochemical products and mineral raw materials, the temperature can be between 20-160 ℃, temperature ± 2 ℃ or less.
2. High thermal efficiency, than the average oven to improve more than 2 times.
3. Indirect heating, the material will not be contaminated, in line with "GMP" requirements. Equipment maintenance is simple, easy to clean.
3. Technical Parameters of SZG sea salt food rotary double cone vacuum dryer
| Model | SZG-100 | SZG-350 | SZG-500 | SZG-750 | SZG-1000 | SZG-1500 | SZG-2000 | SZG-3000 | SZG-5000 |
| Total volume (L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 5000 |
| Loading volume (L) | ≦50 | ≦175 | ≦250 | ≦375 | ≦500 | ≦750 | ≦1000 | ≦1500 | ≦2500 |
| Rotary speed (r/min) | 3-13 | ||||||||
| Motor power (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 | 3 | 4 | 5.5 | 11 |
| Rotary height (m) | 1.75 | 2.1 | 2.25 | 2.49 | 2.8 | 2.94 | 2.99 | 3.33 | 3.9 |
| Tank inner pressure (Mpa) | -0.09-0.15 | ||||||||
| Clip set pressure (Mpa) | ≦0.3 | ||||||||
| Working temp.(℃) | Inner≤85, jacket≤140 | ||||||||
| Heating way | Steam, Hot water, Heat transfer oil heating | ||||||||
| Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 4300 | 5500 |
| Floor area (L*W) | 2160*800 | 2260*800 | 2350*800 | 2550*1000 | 2860*1300 | 3260*1400 | 3760*1800 | 3900*2000 | 4770*2300 |
Note: these data only for reference. We can design and manufacture different model upon customers' request.
