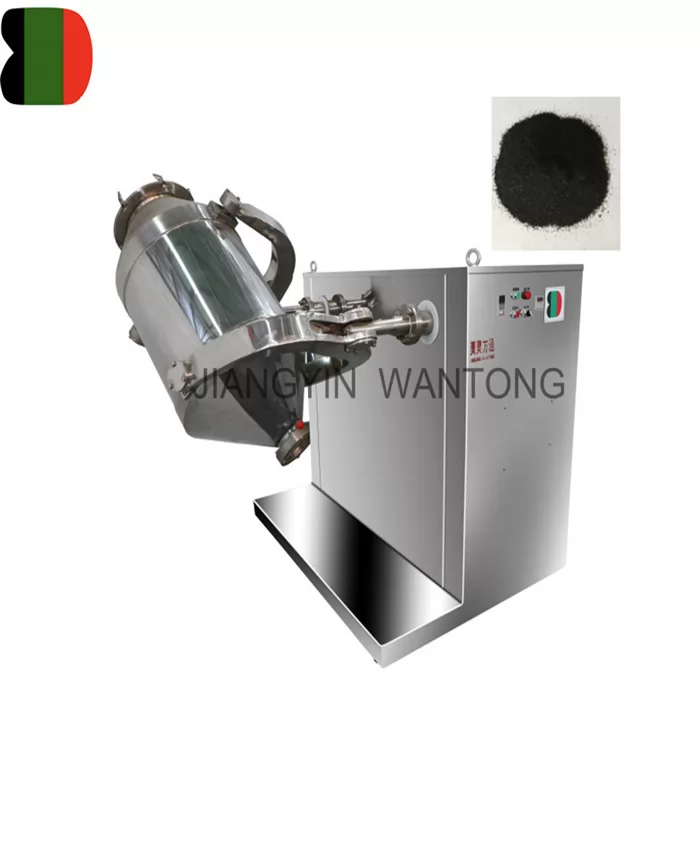

The SYH 3d grain powder mixer blender mixing blending machine is widely used for the mixing of powder materials in the industry of pharmacy, chemical industry, food and so on; as well as for quick and even mixing of various materials in different granule size and gravity.
Products Details
1. MAIN APPLICATION of SYH 3d grain powder mixer blender mixing blending machine
SYH 3d grain powder mixer blender mixing blending machine is widely used for the mixing dry pharmacy, chemical industry, food, cosmetic powder etc. Like tea powder, food grade dry powder, industrial powder, dry milk powder, pills, milk powder,pharmaceutical powder etc.
2.FEATURES of SYH 3d grain powder mixer blender mixing blending machine
With its unique three-dimensional swing, parallel moving and rolling methods, SYH 3d grain powder mixer blender mixing blending machine can generate a strong pulse movement to push forward and to mix target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. It also has the advantages of smooth running, low noise, high loading quantity and short mixing time as well.
We will give you our factory wholesale price.
3.WORKING PRINCIPLE of SYH 3d grain powder mixer blender mixing blending machine

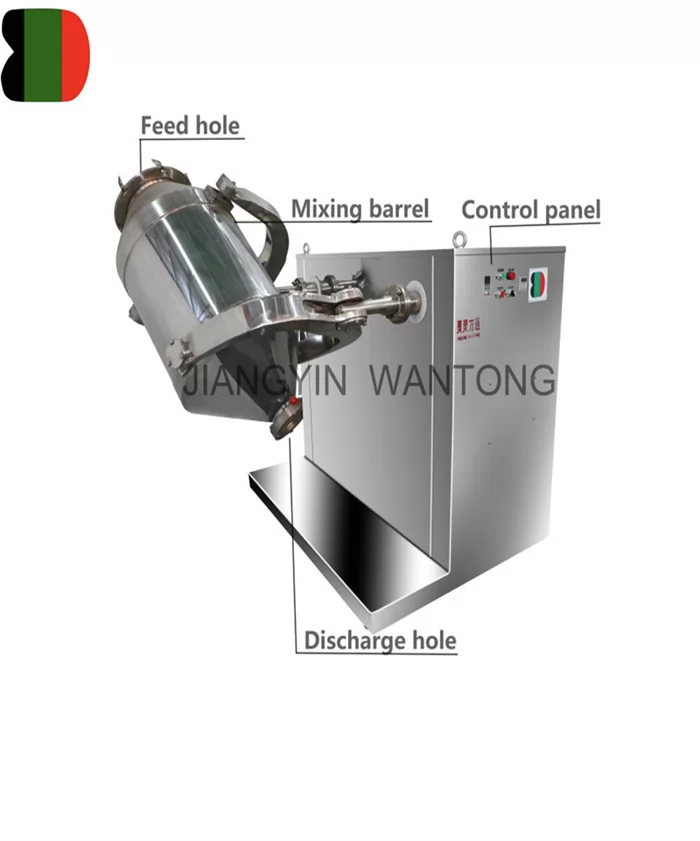

This 3d grain powder mixer blender mixing blending machine is composed of base, frequency change motor, main axis, rotor and cylinder, etc. The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circular, radical and axially, achieving uniform mixing of different varieties of material.
4.TECHNICAL PARAMETERS of SYH 3d grain powder mixer blender mixing blending machine
Type | SYH-10 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 |
Barrel volume (L) | 10 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 |
Max. loading volume (L) | 8 | 40 | 80 | 160 | 320 | 480 | 640 | 800 |
Max. loading weight(kg) | 5 | 25 | 50 | 100 | 200 | 300 | 400 | 500 |
Spindle speed(r/min) | 0-30 | |||||||
Power(KW) | 0.37 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
Overall size(L*W*H) (mm) | 600*1000*700 | 1000 *1400 *1100 | 1200*1700*1200 | 1400 *1800 *1500 | 1800 *2100 *1800 | 1900 *2100 *2100 | 2200 *2400 *2250 | 2250*2600*2400 |
Weight (kg) | 150 | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 |
