Vacuum Conveyor Transportor
Home > Products > Conveyor > ZKS > Vacuum Conveyor Transportor
  • ZKS66 powder vacuum conveyor
  • ZKS66 powder vacuum conveyor
  • ZKS66 powder vacuum conveyor

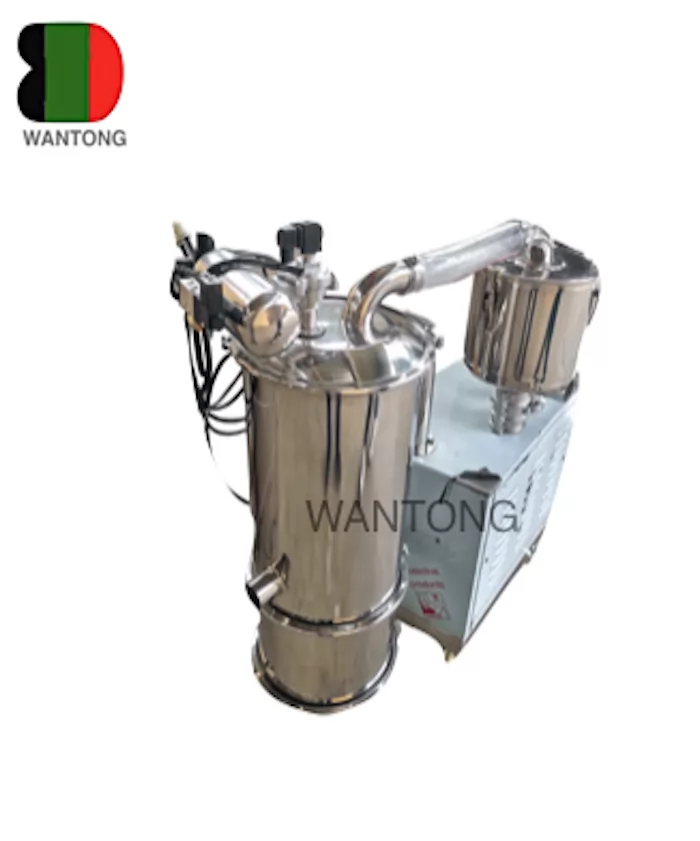

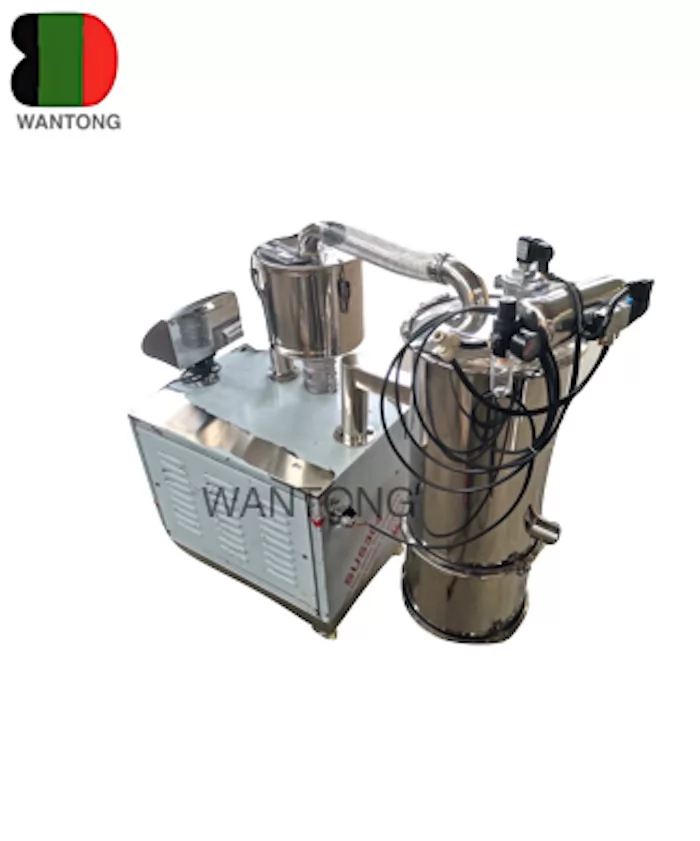

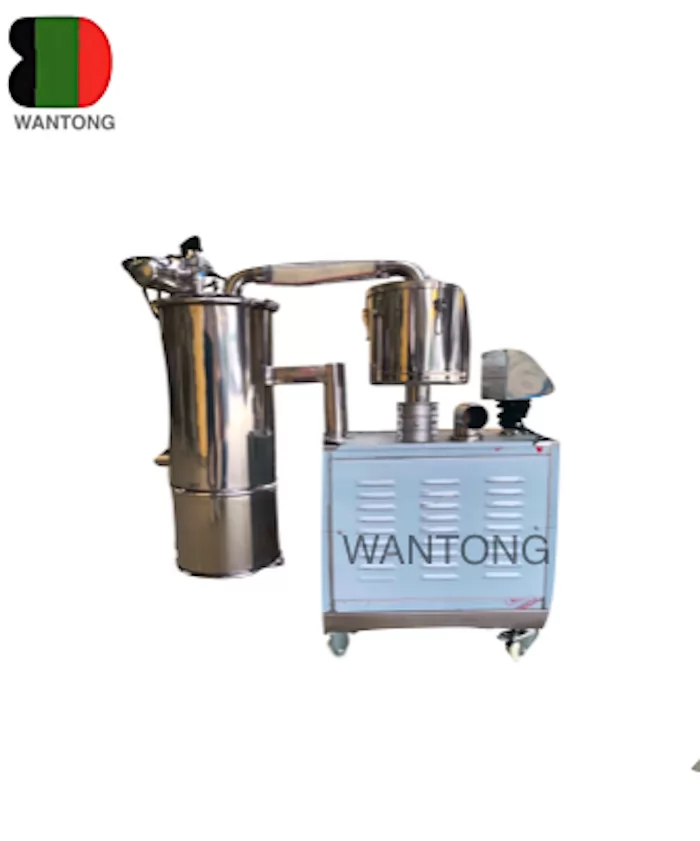

ZKS66 powder vacuum conveyor

Compared with traditional oil seal blade vacuum pump conveying solution, the injection vacuum pump used in conveyors are more flexible, more clean.

Products Details

1. Advantage:

Compared with traditional oil seal blade vacuum pump conveying solution, the injection vacuum pump used in conveyors are more flexible, more clean.

2. Working principle:

First the vacuum is generated in the air injection pump, and powder material is sucked in the conveyor tank, the powder is separated from the air by the filter and stay in the conveyor tank, when the tank is full filled, the pump stop and discharge valve is opened for powder material discharge. All the process is controlled by the controller.

3. Features:

Vacuum conveying in close pipeline, no leakage, no cross contamination.

Low energy consumption

Well static electricity elimination.

Ex-provffe type as an option

Easy to install and cleaning

In accordance with GMP

Made of ANSI 304/316L Stainless Steel

4. Applications:

Pharmaceutical industry: tablet, granulate, capsule, pills

Food industry: additive, surge, coffee, milk powder, flakes, pasta

Chemical industry: plastic particles, dye material, rubber powder, organic bulk material......

Other industry: small parts, mineral powder, herbs......

Technical Parameters

ModelCoveying capacity(kg/h)Air consumption(L/min)Gas pressureMpaOverall size
QVC-13501800.4-0.6Φ140*560
QVC-27003600.4-0.6Φ213×720
QVC-315007200.4-0.6Φ290×850
QVC-4300014400.4-0.6Φ420*1150
QVC-5600028800.4-0.6Φ420*1150
QVC-6900043200.4-0.6Φ420*1350
