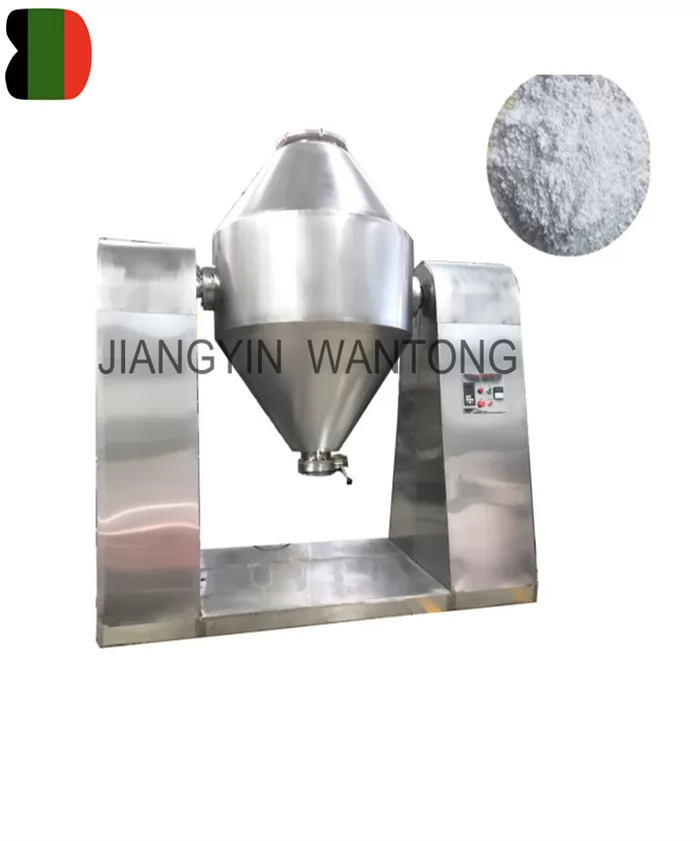

This tea powder rotary double cone mixer blender mixing blending machine is used in pharmaceutical, chemical, food and other industries more than two kinds of dry powder and particles evenly mixer.
Products Details
1.MAIN USE of w tea powder rotary double cone mixer blender mixing blending machine
This tea powder rotary double cone mixer blender mixing blending machine is used in pharmaceutical, tea, food and other industries more than two kinds of dry powder and particles evenly.
2.CHARACTERISTICS of w tea powder rotary double cone mixer blender mixing blending machine
This tea powder rotary double cone mixer blender mixing blending machine has the advantages of simple operation, uniform mixing, feeding can be equipped with vacuum suction device. The tea powder rotary double cone mixer blender mixing blending machine can also be based on user requirements set up a forced mixing mechanism, can be fine powder, the material after the clot or more than two kinds of powder and some water containing materials can be mixed. The other can trace phases and additives can also achieve the mixing effect (refers to only small amount of mixing the ingredients).

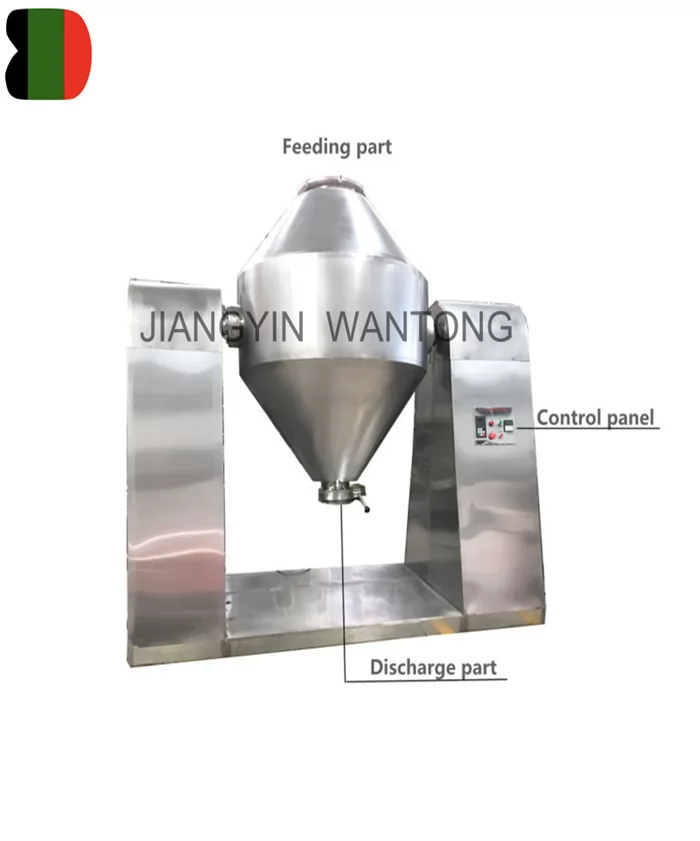

This tea powder rotary double cone mixer blender mixing blending machine is made of stainless steel butterfly valve, which is convenient for loading and unloading and cleaning. The tube material is made of stainless steel, the inner wall is smooth and clean, no dead angle, easy to clean, avoid mixing medicine, accord with the production and quality control of drug (GMP).
tea powder rotary double cone mixer blender mixing blending machine uniform coefficient of variation is less than or equal to 4% degrees.
tea powder rotary double cone mixer blender mixing blending machine is with full stainless steel 304 double cone drum cylinder.
3.TECHNICAL DATA of w tea powder rotary double cone mixer blender mixing blending machine
| Model | 180 | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Total volume(L) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
| Capacity(kg/batch) | 40 | 60 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Rotate speed (rpm) | 15 | 15 | 12 | 12 | 12 | 12 | 12 | 7.8 | 7.8 | 7.8 |
| Motor power(kw) | 1.1 | 1.1 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 30 |
| Overall size(L*W*H)(mm) | 1400 ×800 ×1850 | 1685 ×800 ×1850 | 1910 ×800 ×1940 | 2765 ×1500 ×2370 | 2960 ×1500 ×2480 | 3160 ×1900 ×3500 | 3386 ×1900 ×3560 | 4450×2200×3600 | 4750 ×2500 ×3680 | 5100 ×2300 ×3850 |
| Weight(kg) | 280 | 310 | 550 | 810 | 980 | 1500 | 2150 | 2500 | 3200 | 3500 |
Addition: About the mixing time, because of the different kinds of materials with different elements, quantities, fineness, proportions, the mixing time varies much depending on the clients' practice.
