This w double cone mixer machine for spice is used in pharmaceutical, chemical, food and other industries,with particular effect to free flowing powder and granules.This machine has high mixing efficiency, no dead Angle, and more uniform mixing
Products Details

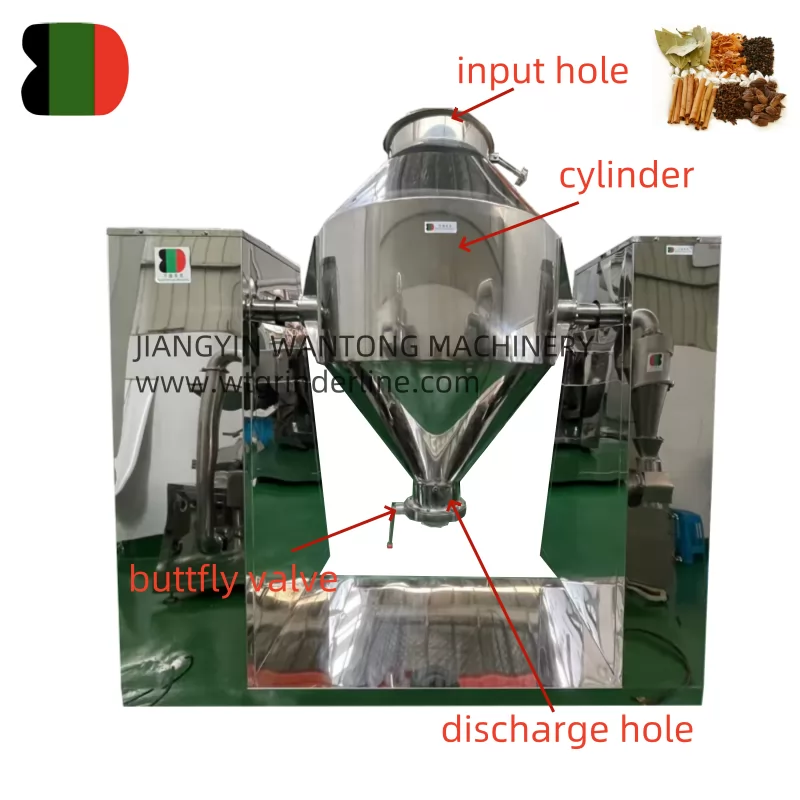

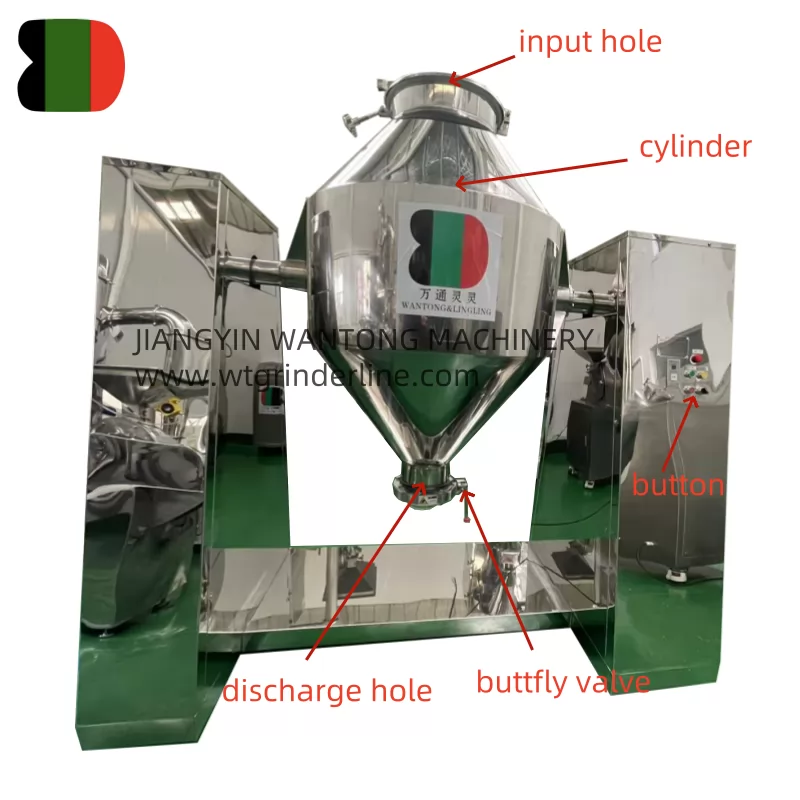

1.MAIN DESCRIPTION of w Double Cone Mixer for spice
This double cone mixer machine has the advantages of simple operation, uniform mixing, feeding can be equipped with vacuum suction device. The machine can also be based on user requirements set up a forced mixing mechanism, can be fine powder, the material after the clot or more than two kinds of powder and some water containing materials can be mixed.
2.TECHNICAL DATA of w Double Cone Mixer for spice
| Model | 180 | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Total volume(L) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
| Capacity(kg/batch) | 40 | 60 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Rotate speed (rpm) | 15 | 15 | 12 | 12 | 12 | 12 | 12 | 7.8 | 7.8 | 7.8 |
| Motor power(kw) | 1.1 | 1.1 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 30 |
| Overall size(L*W*H)(mm) | 1400 ×800 ×1850 | 1685 ×800 ×1850 | 1910 ×800 ×1940 | 2765 ×1500 ×2370 | 2960 ×1500 ×2480 | 3160 ×1900 ×3500 | 3386 ×1900 ×3560 | 4450×2200×3600 | 4750 ×2500 ×3680 | 5100 ×2300 ×3850 |
| Weight(kg) | 280 | 310 | 550 | 810 | 980 | 1500 | 2150 | 2500 | 3200 | 3500 |
Addition: About the mixing time, because of the different kinds of materials with different elements, quantities, fineness, proportions, the mixing time varies much depending on the clients' practice.
