This beans crushing grinding crusher grinder pulverizer machine is mainly used in the chemical industry, medicine (TCM), food, spices, resin powder, besmear powder etc,high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.
Products Details
1. MAIN APPLICATION
This pulverizer machine for beans is mainly used in the chemical industry, medicine (TCM) and food, including spices, chilli, coffee, herbs, salt, pepper, tobacco, corn, leaf, cocoa, maize, supplement, turmeric, resin powder, besmear powder etc, high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.
2. WORKING PRINCIPLE
This crushing machine for beans adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect is good, the heat of the crushing chamber and the finished product outflow together from the sieve by strong airflow which is produced when crushing, crushing fineness can be decided by different sieves.

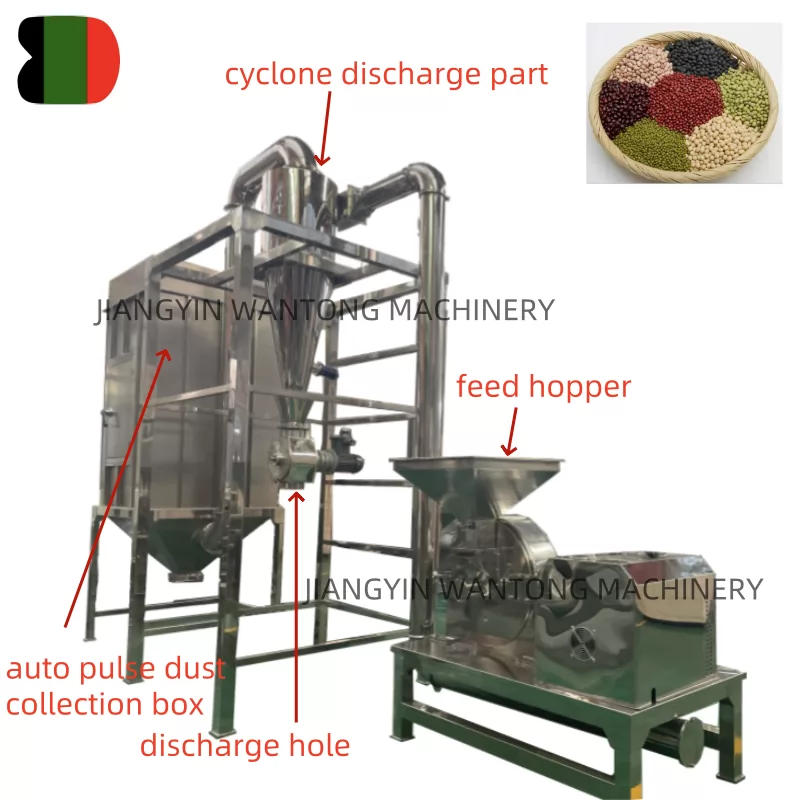

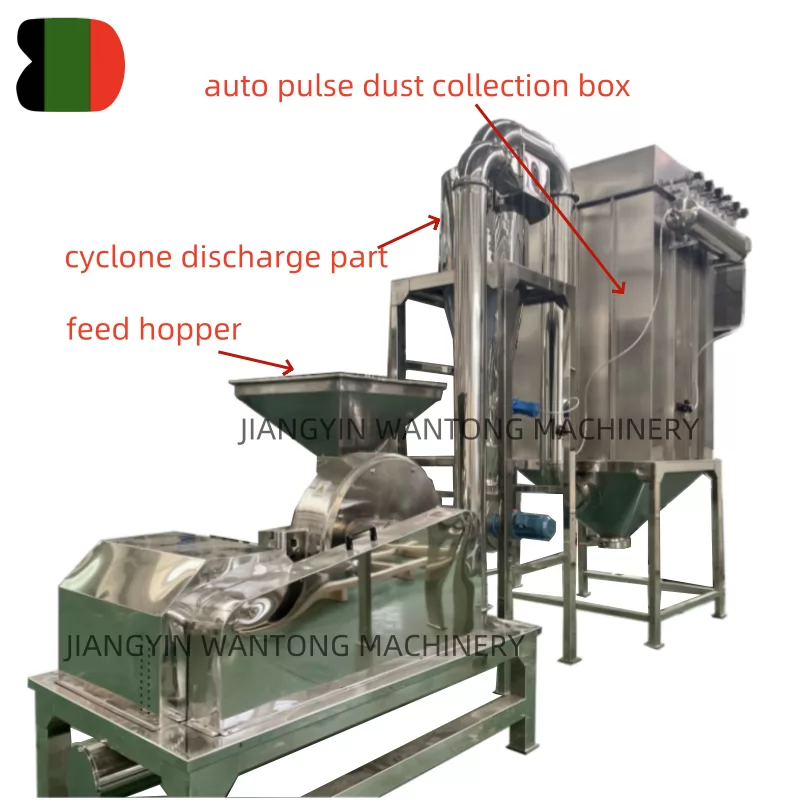

The pulverizer machine for beans makes the materials crushed by the impact & grind function of the relative motion between active and fixed fluted discs, and impact between the materials. Smashed materials enter into the capture bag by rotating centrifugal force function, and the dust is filtered and recycled by a dust collector through a bag filter box. This machine for beans designed according to GMP standards and wholly made of stainless steel materials, has no flying dust during production. It can improve the utilization rate of materials and reduce the cost of enterprise and has reached the international advanced level at present.
3. MAIN FEATURE
1. This beans pulverizer machine can match the turbine blade, but it is also can match another different blade (if the consumer needs, we can design. it so the consumer can change different blades to use)
2. This beans crusher grinder has a water cooling system.
3. This beans spice grinder machine can add magnetic, to remove the Metal impurity (as consumer requirement)
4. This beans pulverizer machine can match the general dust absorption system, it also can match the pulse dust absorption system
4. TECHNICAL PARAMETER& CONFIGURE
Model | Capacity (kg) | Feed size (mm) | Output size (mesh) | Total power(kw) | Main speed(r/min) | Dimension(mm) | Weight (kg) |
WF- 30B | 50-300 | <10 | 12-120 | 11.75 | ~3800 | 6000*1200*2900 | 700 |
WF- 40B | 80-400 | <12 | 13.75 | ~3400 | 6000*1200*2900 | 1000 | |
WF- 50B | 100-500 | <12 | 17.25 | ~2900 | 7000*1500*2900 | 1200 | |
WF- 60B | 300-800 | <15 | 33.75 | ~2400 | 7500*1500*3650 | 1500 | |
WF- 80B | 400-1500 | <15 | 60.1 | ~2200 | 8400*2500*4850 | 2000 |
