The WFJ spice grinder machine is made up of three parts: the main machine, the auxiliary machine, and the electric control box. WFJ ultra fine powder grinder machine has the properties of wind selection, having no sieve or net, and an even granularity of the processed material. The production process goes on continuously, the ultra fine powder grinder machine can undertake the grinding of chemical products. food medicine, medicament, cosmetics, plastic, dyestuff, resin, cotourant, grain, etc.
Products Details
The spice mushroom powder making crushing machine is made up of three parts: the main machine, auxiliary machine, and the electric control box. WFJ mushroom powder making crushing machine has the properties of wind selection, having no sieve or net, and an even granularity of the processed material. The production process goes on continuously, the mushroom powder making crushing machine can undertake the grinding of chemical products, food, medicine, medicament, cosmetics, plastic, dyestuff, resin, cotourant, grain, etc.
Model | WFJ-10 | WFJ-15 | WFJ-20 | WFJ-30 | WFJ-60 | WFJ-80 | WFJ-100 |
Production Capacity (kg) | 10~50 | 50~100 | 80~200 | 200~400 | 400~800 | 500~1000 | 600~1200 |
Feeding size (mm) | <5 | <10 | <10 | <12 | <12 | <12 | <12 |
Crushing fineness (mesh) | 80-600 | ||||||
Motor power (kw) | 12 | 13.37 | 18.37 | 42.5 | 77.5 | 96 | 138 |
Spindle speed (rpm) | 4000 | 5800 | 4200 | 3800 | 3200 | 2800 | 2000 |
Weight (kg) | 500 | 1000 | 1200 | 1800 | 2500 | 3000 | 4000 |
Overall dimension (L*W*H)(mm) | 1700x1800x2200 | 4500x1250x2700 | 6000x1250x2900 | 7100x1300x3650 | 8000x2300x4500 | 8500x2500x4600 | 10000x2800x5000 |
*The above specifications are provided for reference only. We can also design and manufacture different standards upon the customer's request.
Basically, all our grinders share the same principle, the impact produced by high-speed rotary cut and crush the material, to realize the result of grinding. However, there are some differences between different types. For example, the outstanding features of WFJ superfine pulverizer are reflected in its cyclone separating technology, the first separating step occurs in the grinding chamber, adjustable cyclone separating device controls different powders of different particle sizes in different places, and coarser ones stay in the grinding chamber, while finer ones go into next cyclone separating device. The second step happens at the top of the pulse cyclone discharge part. the finest powder which is known as dust is sucked into the dust-collecting system, and others are discharged.
Food Processing Plants: For producing finely ground spice powders that are ready to be used in cooking or packaged for retail.
Pharmaceutical Industry: It can also be used for grinding herbal medicines and botanical products into fine powder.
Chemical Industry: For grinding chemical products that require fine particle sizes.
The WFJ spice grinder machine is an indispensable tool for businesses in the food and spice industries. It offers efficient, precise, and hygienic spice grinding, ensuring high-quality output and improving production processes. If you are in the spice production business, this machine can help you optimize your grinding operations and maintain consistent quality in your products.
Products Picture

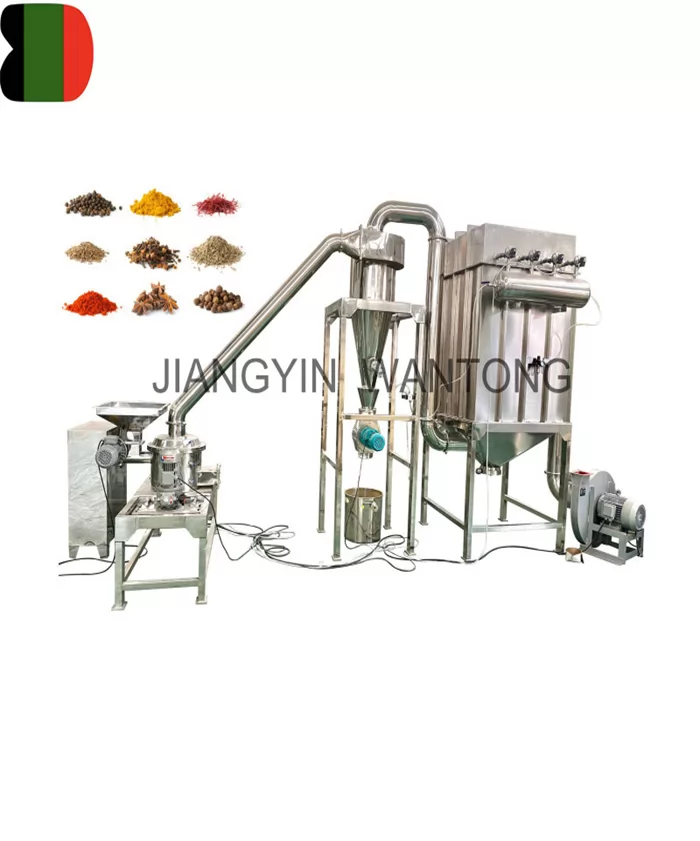

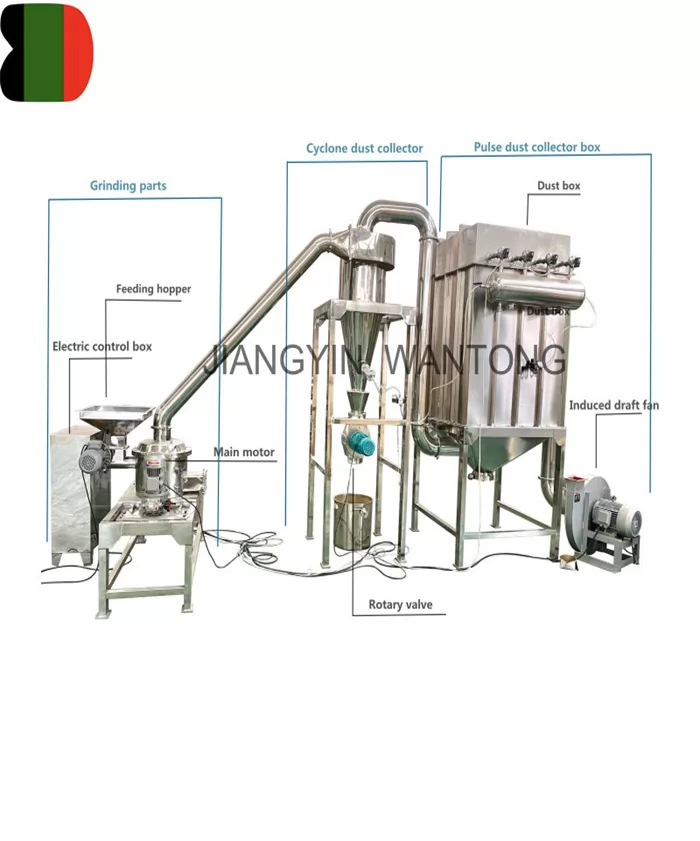

The superfine powder grinder crusher pulverizer include pulse dust collector system, cyclone duscharge part, air banner, pulse valve, discharge motoe, output part.
