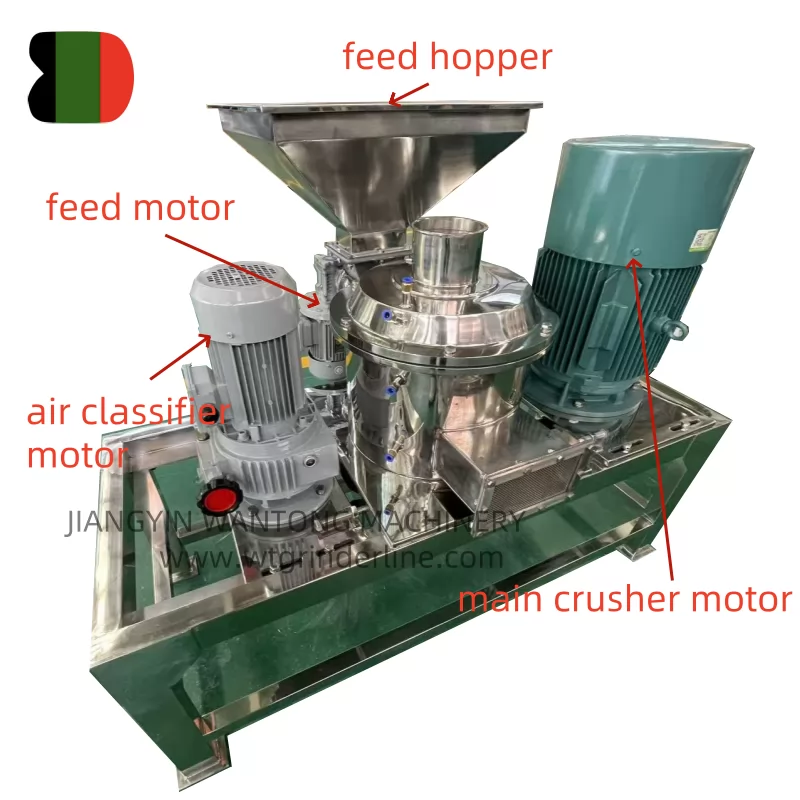

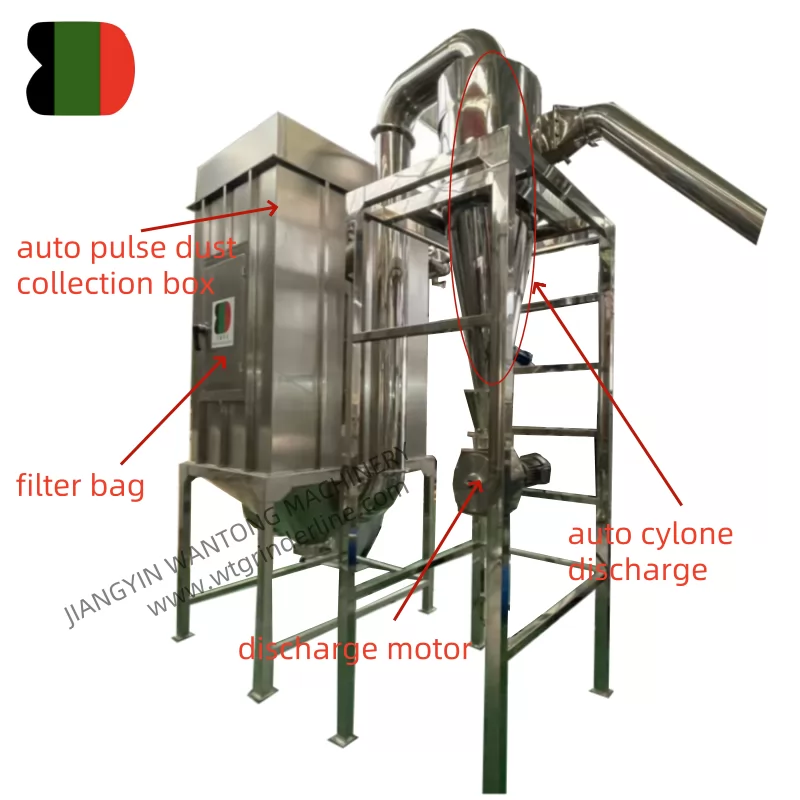

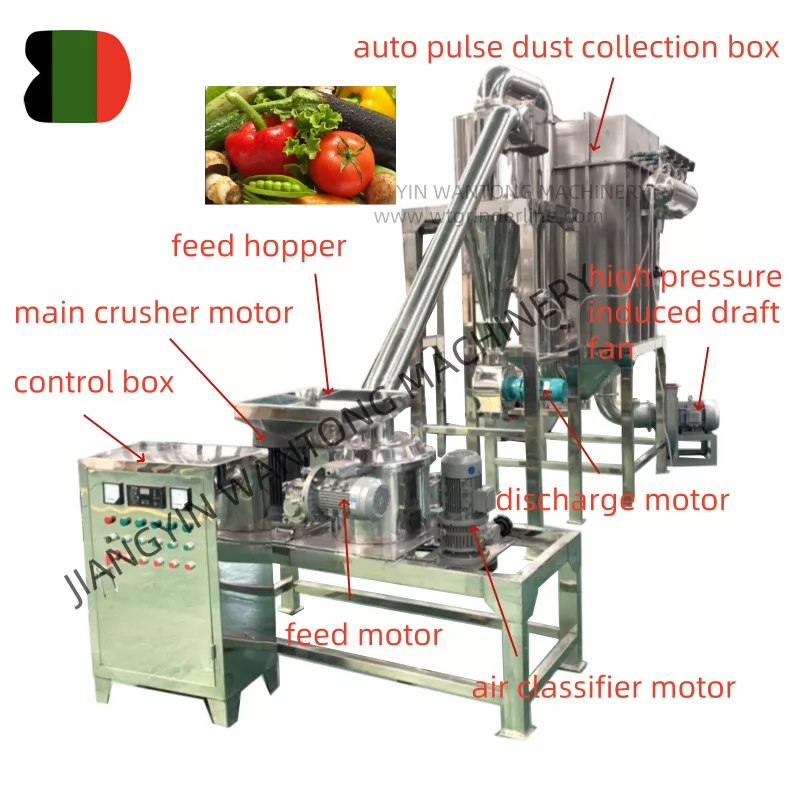

The vegetable mill machine is made up of three parts: main machine, auxiliary machine and electric control box. It has the properties of wind selection, having no sieve or net, and an even granularity of the processed material. This machine has the function of automatic discharge and automatic dust removal.
Products Details
1.APPLICATION of wfj vegetable mill superfine powder making grinding milling pulverizer machine
The vegetable mill machine is mainly used for grinding material into fine powder.The production process going on continuously, the machine can undertake the grinding of chemical products. food medicine, medicament, cosmetics, plastic, dyestuff, resin, cotourant, grain, etc.
| Model | WFJ-10 | WFJ-15 | WFJ-20 | WFJ-30 | WFJ-60 | WFJ-80 | WFJ-100 |
| Production Capacity (kg) | 10~50 | 20~80 | 50~100 | 100~200 | 200~500 | 300~800 | 400~1000 |
| Feeding size (mm) | <5 | <10 | <10 | <12 | <12 | <12 | <12 |
| Crushing fineness (mesh) | 80-600 | ||||||
| Motor power (kw) | 12 | 13.37 | 18.37 | 42.5 | 77.5 | 96 | 138 |
| Spindle speed (rpm) | 4000 | 5800 | 4200 | 3800 | 3200 | 2800 | 2000 |
| Weight (kg) | 500 | 1000 | 1200 | 1800 | 2500 | 3000 | 4000 |
| Overall dimension (L*W*H)(mm) | 1700x1800x2200 | 4500x1250x2700 | 6000x1250x2900 | 7100x1300x3650 | 8000x2300x4500 | 8500x2500x4600 | 10000x2800x5000 |
*The above specifications are provided for reference only. We can also design and manufacture different standard upon customer's request.
