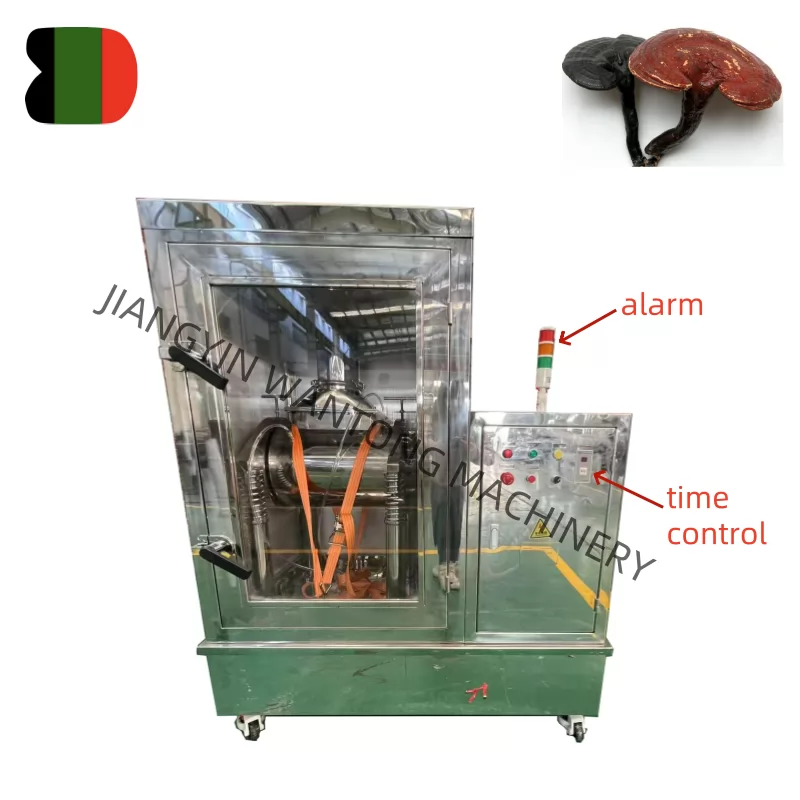

The vibrating grinder machine for reishi has request for the material,especially Fibrous, high toughness, and high-strength materials.It is designed according to GMP standard.
Products Details
1.MAIN USE of WFM reishi vibration grinder
The vibrating mill machine for reishi is effective for any fiber, high toughness, high hardness or a certain degree of water content of the material can be effectively crushed, especially for Chinese medicine cell wall and other purposes designed to improve the bioavailability of drugs and the use of conventional methods can not meet the requirements Fineness of the material.
2.TECHNOLOGY DATA of WFM reishi vibration grinder
| MODEL | 20 | 50 | 100 |
| Load volume（L） | 20 | 50 | 100 |
| Capacity(kg/batch) | 2-10 | 10-30 | 20-60 |
| Final powder fineness | 200-3000mesh | ||
| Cooling method | Water cooling | ||
| Power（kw） | 2 | 7.5 | 11 |
| Overall size（mm） （L×W×H） | 1250×900×1400 | 2100×1000×1600 | 2850×1500×1800 |
| Weight（kg） | 500 | 950 | 1500 |
