Common ribbon mixing machine include LDH-100 ribbon mixer, etc. Generally speaking, the numbers represent some specifications of the mixer, such as volume, handling capacity, etc.
Double ribbon blender: usually refers to a horizontal double ribbon blender, which has two layers of inner and outer spiral ribbons. The inner spiral ribbon moves the material to both sides, and the outer spiral ribbon moves the material from both sides inward, so that the material is mixed back and forth. Part of the material moves along the axial radial direction under the push of the spiral ribbon, forming a convection cycle, so as to obtain rapid and uniform mixing in a shorter time. This model has strong mixing adaptability and can achieve solid-solid, solid-liquid, and liquid-liquid mixing with high mixing accuracy. In addition, it has stable operation, low noise, compact structure, small footprint, simple operation, and convenient maintenance.

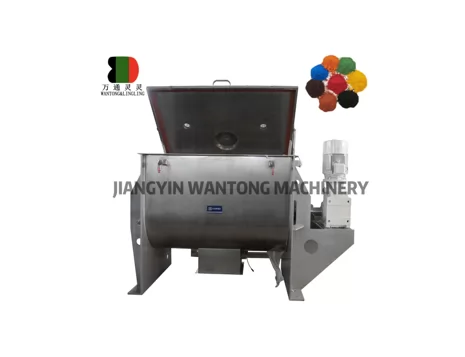

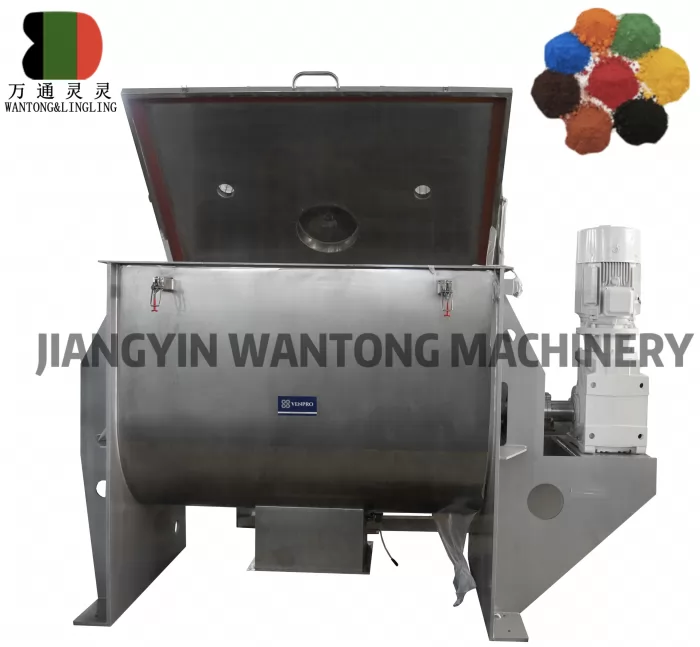

Horizontal ribbon mixer: It consists of a U-shaped container, a ribbon mixing blade, and a transmission component. The forward and reverse rotating spirals are installed on the same horizontal axis to form a low-power and high-efficiency mixing environment. The spiral blades are generally made into double or triple layers. The outer spiral gathers the materials from both sides to the center, and the inner spiral transports the materials from the center to both sides, which can form more vortices in the flow of materials, speed up the mixing speed, and improve the mixing uniformity.
Vertical spiral ribbon mixer: Different from the horizontal type, it has a vertical structure and is suitable for some special process requirements or site restrictions. It usually has a high height. Under the action of the spiral ribbon, the material is circulated and mixed in the vertical direction. It can be used to process some materials that need to be mixed in a higher space, or in occasions with high requirements for floor space. It also has certain applications in some small production or experimental environments, and can meet the mixing needs of small batches and multiple varieties of materials.
You can tell us the model you need and we can provide it for you. Contact us today
