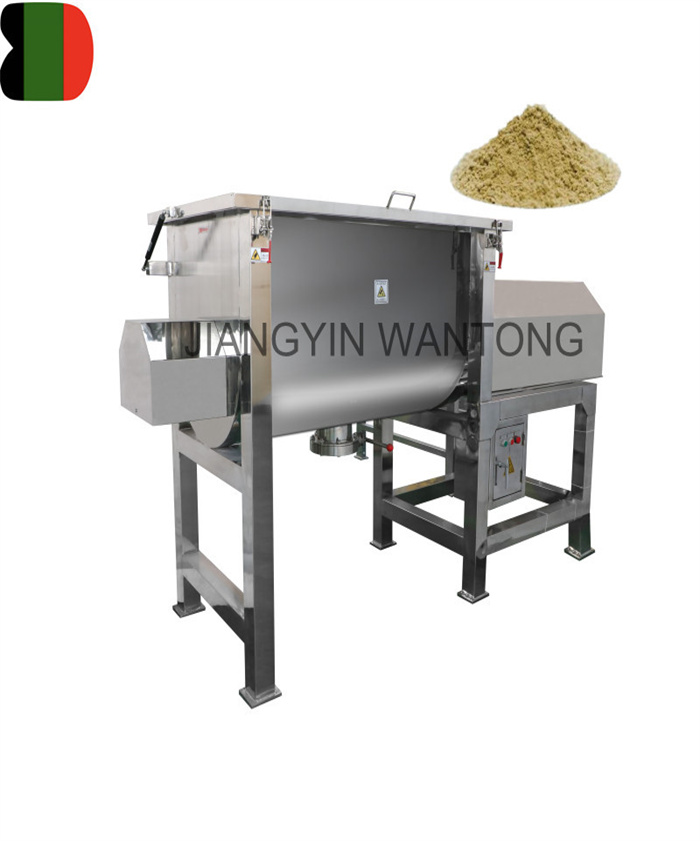

The WLDH pigment powder mixing machine is a full stainless steel mixer, horizontal ribbon mixer shaft is arranged on the transmission screw blade, the internal spiral material from the discharge port conveys direction, and the external spiral material to the discharge port conveys direction. Under the convective motion of the double helix belt, a low power and high efficiency mixing environment is formed.
Installed on the stirring shaft of the spiral drive inside and outside diameter of the material in the cylinder, the stirrer in the cylinder maximum range of turning materials. When the stirring device works, the inner screw drives the material which is close to the center of the shaft to be rotated in an axial direction, the axial direction is pushed away from the discharge port, and the outer screw drives the material close to the wall of the cylinder to rotate in an axial direction, and is pushed forward to the discharge port. The mixed material can be mixed in a short time.
Products Details
A pigment powder mixing machine is a specialized industrial equipment used for blending and homogenizing powdered pigments with other dry ingredients. These machines are essential in industries such as cosmetics, pharmaceuticals, food processing, and chemical manufacturing, where precise and uniform mixing of powders is required.
Mixing equipment for pigment can be widely used for blending industrial, pharmaceutical, chemical, etc dry or wet powder or liquid material.

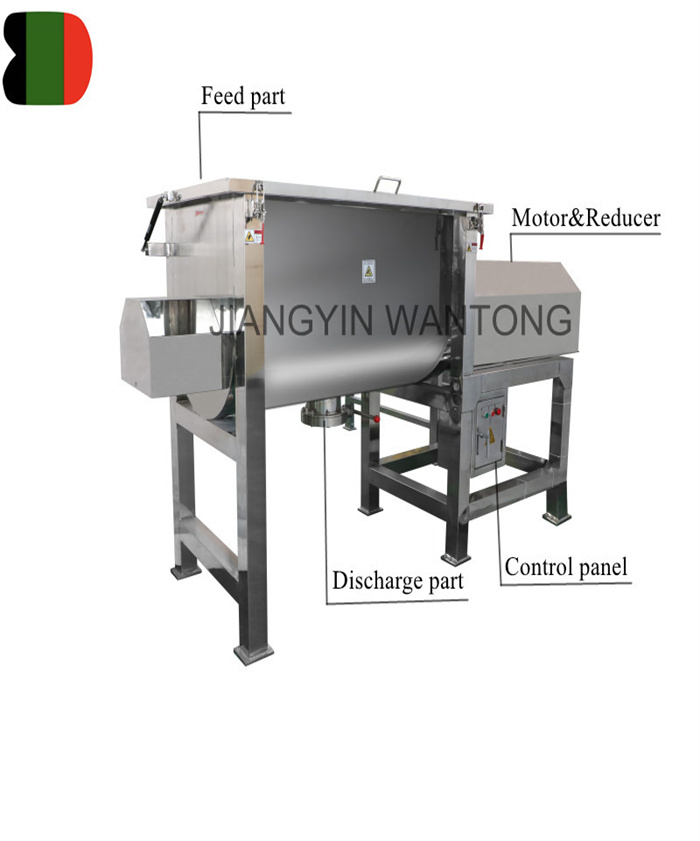

WLDH pigment powder mixing machine, it is mainly with box, stirring device, support, flip part, and transmission part. In the part of the bracket, the steel is welded with enough steel, and all the gears are arranged in the frame. The outer surface of the bracket is made of stainless steel plate, so the utility model has the advantages of compact structure, simple operation, beautiful appearance, small occupation area, convenient cleaning, and good mixing effect.
This WLDH pigment powder mixing machine is made of stainless steel. The box is made of a thick plate, and the sealing parts are arranged at both ends of the stirring shaft to ensure the cleanliness of the material.
We are a real Pigment Mixing Machine factory here, will give you wholesale price!
| Model | All Volume | Load efficiency | Power (kW) | Overall size(mm) | weight (kg) |
| WLDH-200 | 200L | 0.4-0.8 | 3 | 1190x740x770 | 330 |
| WLDH-300 | 300L | 4 | 2030x630x980 | 720 | |
| WLDH-500 | 500L | 7.5 | 2320×730×1130 | 980 | |
| WLDH-1000 | 1000L | 11 | 2800×920×1320 | 1700 | |
| WLDH-1500 | 1500L | 11 | 3180×1020×1550 | 1800 | |
| WLDH-2000 | 2000L | 15 | 3310×1120×1640 | 2100 | |
| WLDH-3000 | 3000L | 18.5 | 3750×1290×1820 | 3000 | |
| WLDH-4000 | 4000L | 22 | 4220×1400×1990 | 3980 | |
| WLDH-5000 | 5000L | 22 | 4220×1500×1990 | 4620 | |
| WLDH-6000 | 6000L | 30 | 4700×1610×2260 | 6180 | |
| WLDH-8000 | 8000L | 37 | 4420×2150×2470 | 8200 | |
| WLDH-10000 | 10000L | 45 | 5520×2960×2720 | 8920 | |
| WLDH-12000 | 12000L | 45 | 5720×3010×2840 | 9520 | |
| WLDH-15000 | 15000L | 55 | 5840×3540×2940 | 9950 |
**1. Mixing Capabilities:
Homogeneous Blending: Ensures thorough mixing of pigment powders with other dry ingredients to achieve a consistent color or formulation.
Customizable Mixing: Allows for adjustments in mixing time, speed, and intensity to meet specific product requirements.
**2. Design and Construction:
Material Compatibility: Constructed from stainless steel or other corrosion-resistant materials to handle various types of pigments and chemicals.
Safety Features: Includes safety guards, emergency stops, and ergonomic design to ensure operator safety during operation.
**3. Operation Efficiency:
Automation: Available in manual, semi-automatic, and fully automatic models for varying production needs.
Batch and Continuous Mixing: Capable of both batch processing and continuous mixing depending on production demands.
**4. Cleaning and Maintenance:
Easy Clean-Up: Designed for quick disassembly and cleaning to minimize downtime between batches.
Low Maintenance: Robust construction and simple design reduce maintenance requirements and extend machine lifespan.
**5. Control and Monitoring:
Process Control: Equipped with controls for adjusting mixing parameters such as speed, time, and temperature.
Monitoring Systems: Optional integration with monitoring systems for process validation and quality assurance.
Mixing pigment powders with ingredients like talc, mica, or titanium dioxide for makeup, skincare, and toiletry products.
Blending powdered pigments with active pharmaceutical ingredients (APIs) or excipients for tablets, capsules, and powders.
Incorporating colorants and additives into dry mixes, seasonings, and beverage powders.
Formulating pigmented powders for paints, coatings, dyes, and specialty chemicals.
