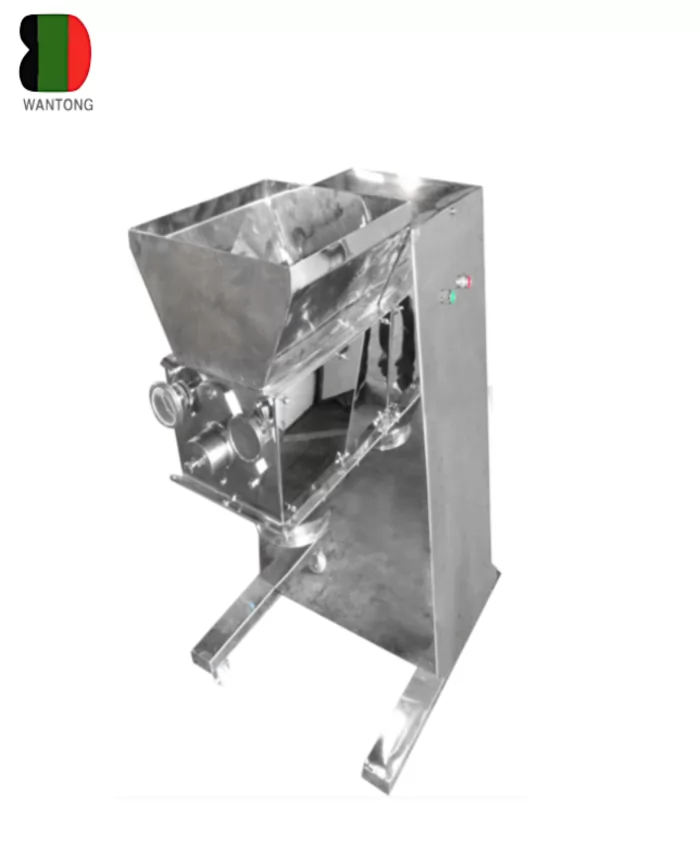

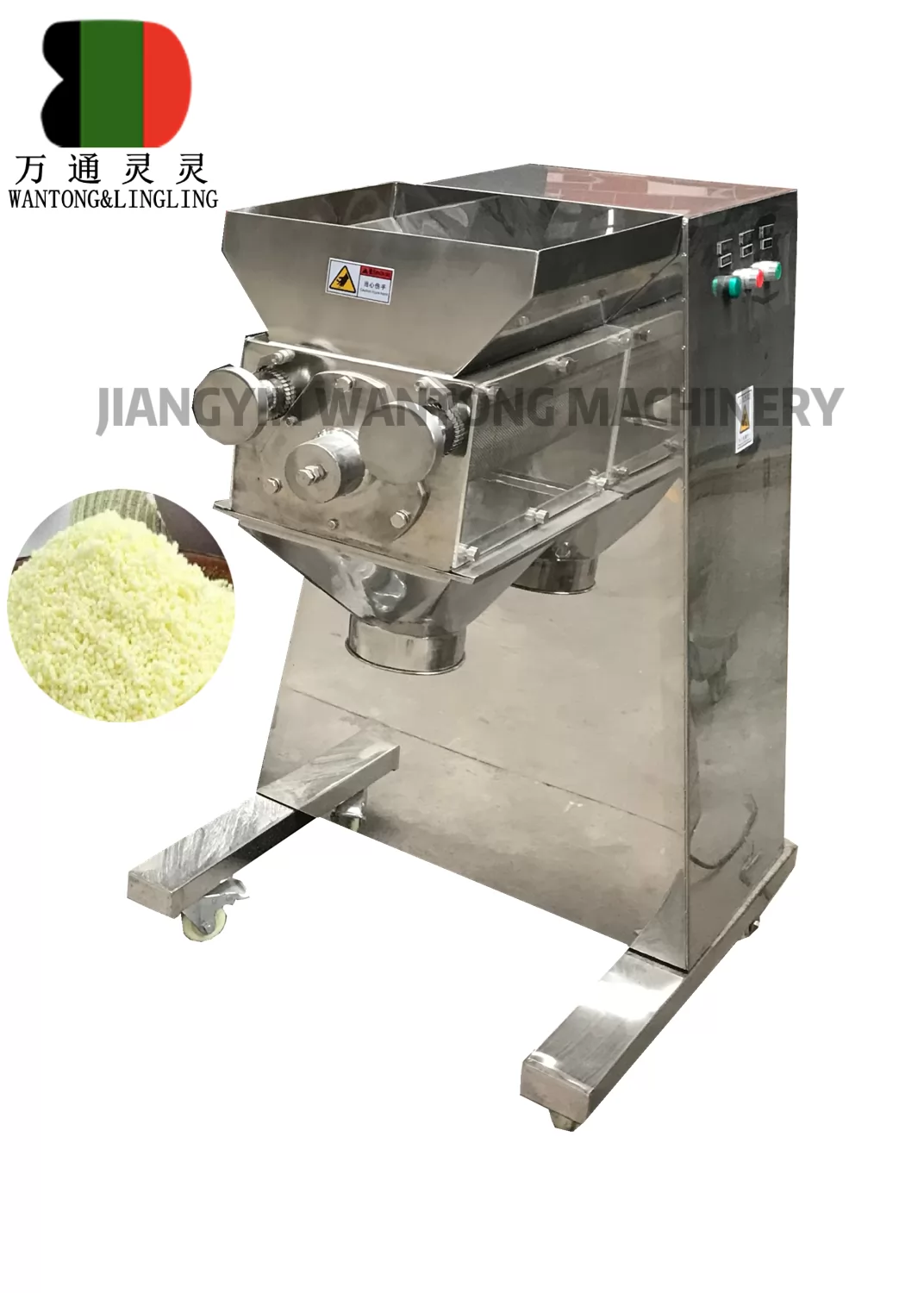

YK High Speed pharmaceutical granules making machine

1.MAIN USE

The machine is widely used in pharmaceutical industry, chemical industry, foodstuff industry, powdered drink and so on. It can make wet powder material particles, can also be used to crush the blocked raw material into small granule quickly.

This machine is a kind of wet powder mixture in a rotating drum, the counter rotating under the action of special equipment made mandatory through the sieve particles.

2.SCOPE
The machine is suitable for pharmaceutical, chemical, food, light industry and other industries.

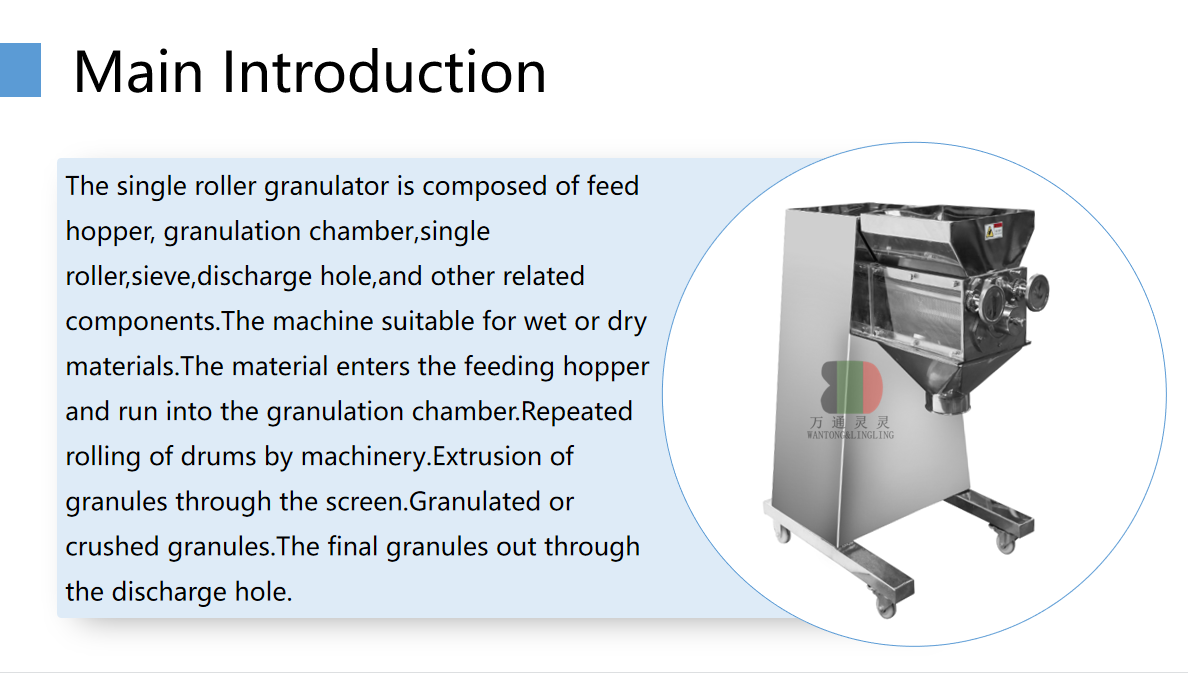

3.WORKING PRINCIPLE

The utility model is driven by a motor, a triangular belt wheel, a worm wheel and a worm wheel, and the five angle hob on the gear shaft is periodically rotated and rotated under the action of an eccentric crankshaft and a lifting rack. Material movement and by screen and rotor clearance control and extrusion particles, its production capacity is changed with the material type, moisture, viscosity and network for different purposes, and can produce various specifications of particles.

In the dry grinding, condenses into lump material in crushing roller made of five collision angle of the hob in. Dry and forced through the screen.

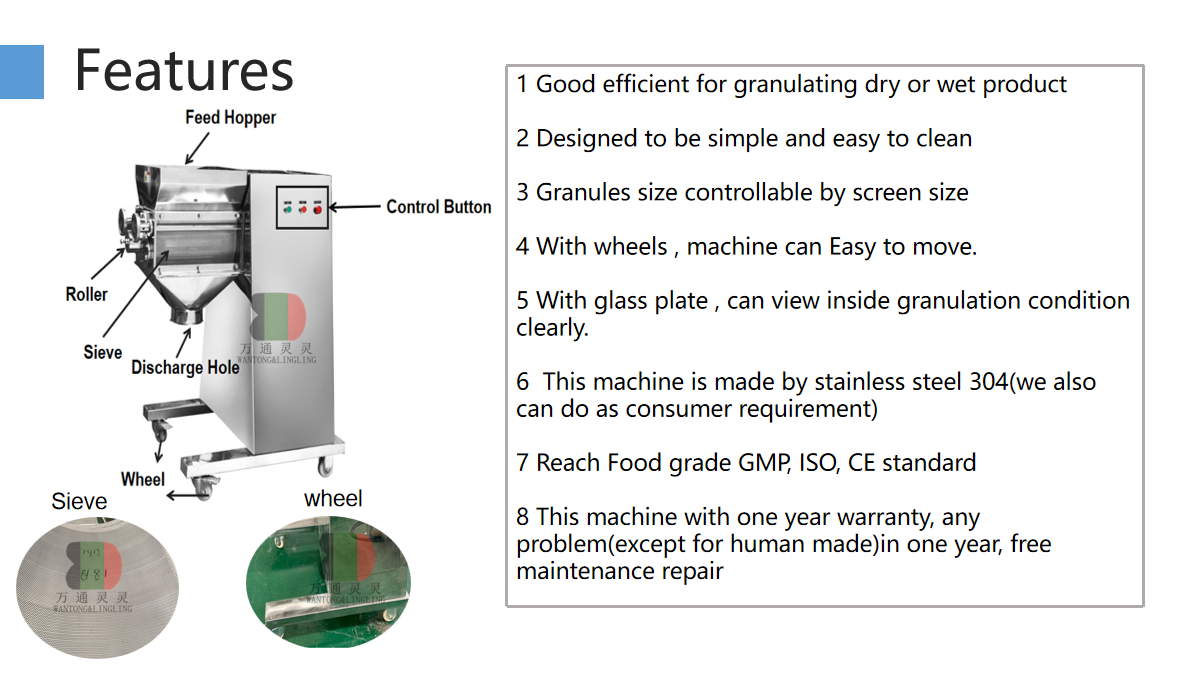

4.FEATURE:

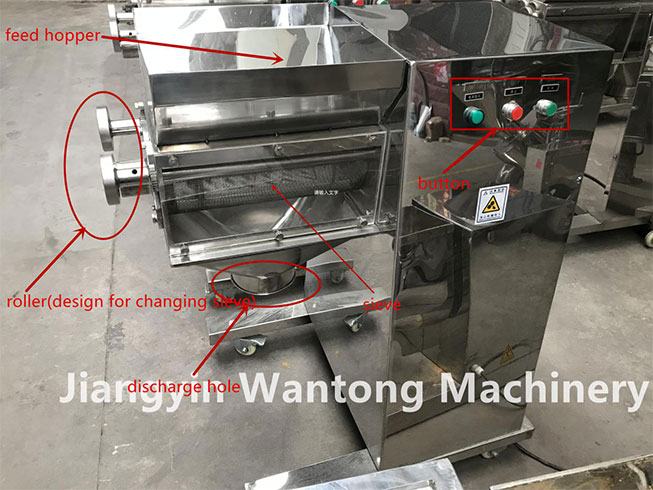

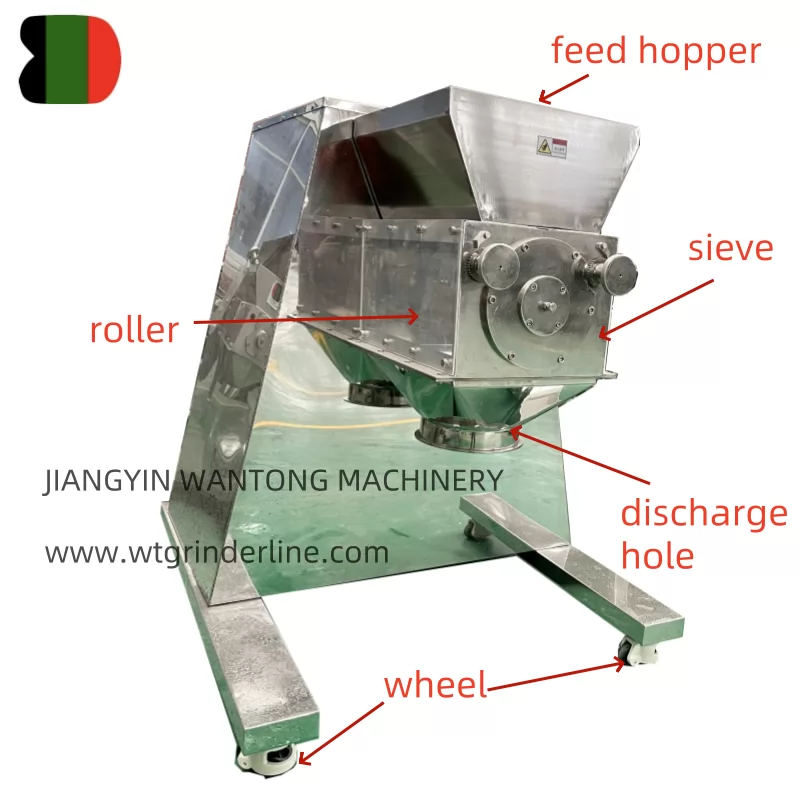

1)The structure of the hopper and the granulating device is designed according to the principle of convenient installation, cleaning and convenient use. The material of the contact with the material is made of stainless steel to ensure the cleanness of the product.

2)Each component particle manufacturing device is completely sealed to prevent oil into raw materials.

3)The screen clamping pipe is used for clamping the screen mesh, so as to ensure that the screen mesh is not close to the rotating drum, and the elastic force of the screen mesh is adjusted by the hand wheel.

4)Users can according to the requirements of the product, select the appropriate screen sieve size, for producing of various specifications of particles.

5.TECHNICAL PARAMETERS

6.CONFIGURATION
