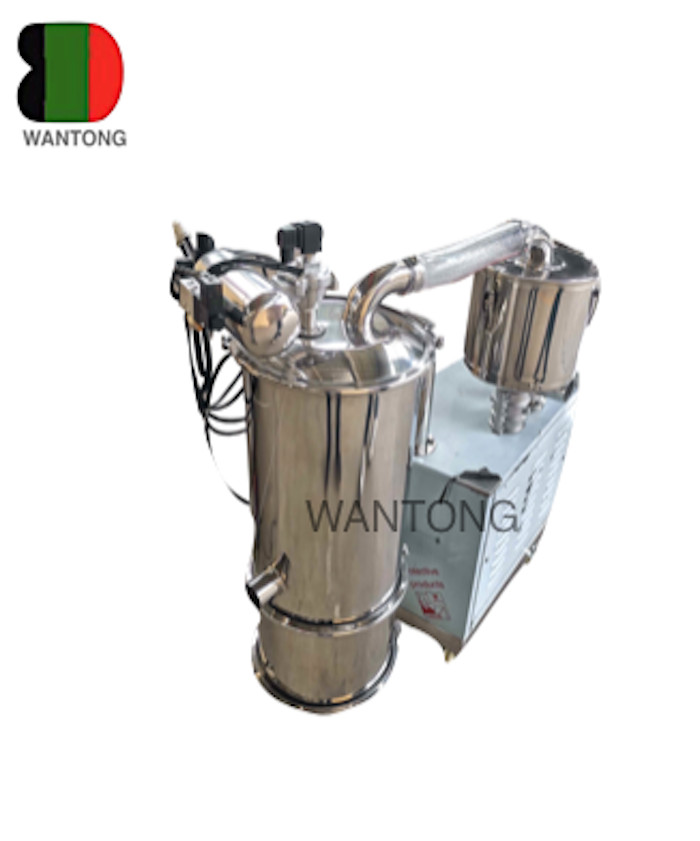

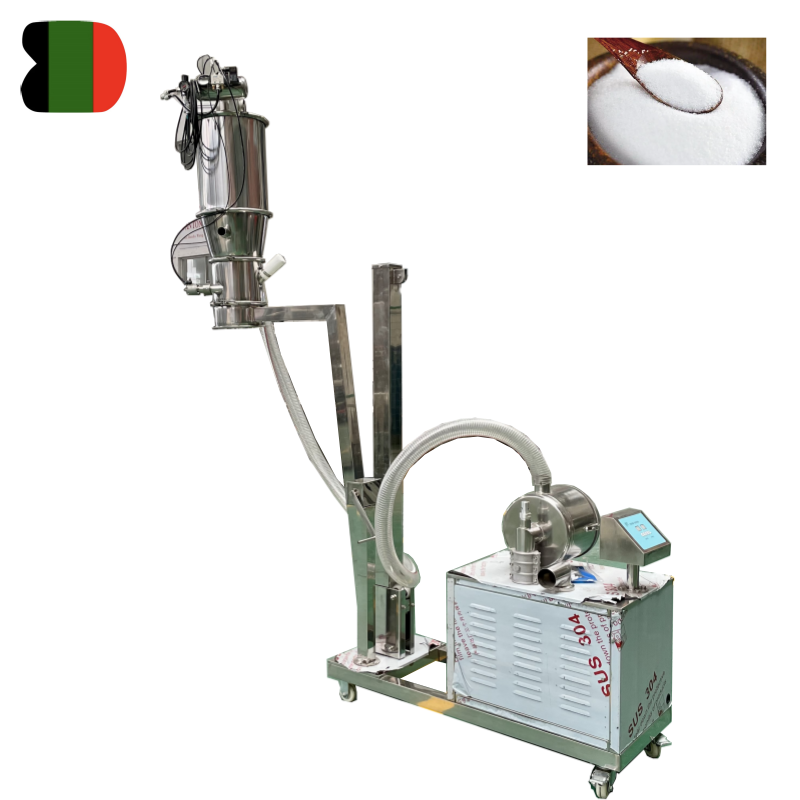

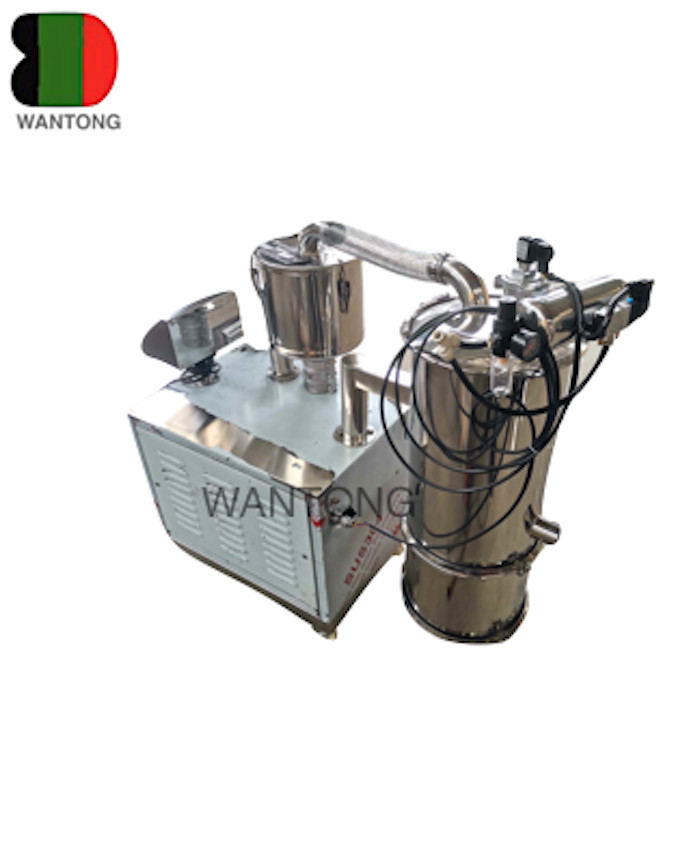

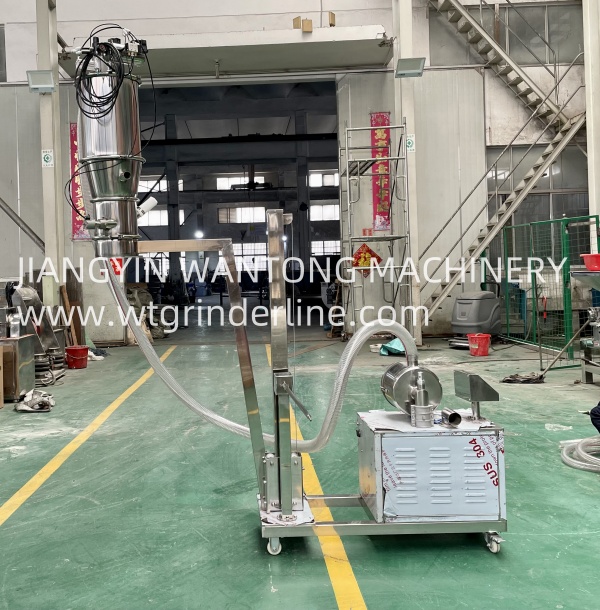

This vacuum converyor for salt compared with traditional oil seal blade vacuum pump conveying solution, the injection vacuum pump used in conveyors are more flexible, more clean.
Products Details
1. Working principle of vacuum conveyor for salt
First the vacuum is generated in the air injection pump, and powder material is sucked in the conveyor tank, the powder is separated from the air by the filter and stay in the conveyor tank, when the tank is full filled, the pump stop and discharge valve is opened for powder material discharge. All the process is controlled by the controller.
2. Features of vacuum conveyor for salt
Vacuum conveying in close pipeline, no leakage, no cross contamination.
Low energy consumption
Well static electricity elimination.
Ex-provffe type as an option
Easy to install and cleaning
In accordance with GMP
Made of ANSI 304/316L Stainless Steel
Technical Parameters of vacuum conveyor for salt
| Model | Coveying capacity(kg/h) | Air consumption(L/min) | Gas pressureMpa | Overall size |
| QVC-1 | 350 | 180 | 0.4-0.6 | Φ140*560 |
| QVC-2 | 700 | 360 | 0.4-0.6 | Φ213×720 |
| QVC-3 | 1500 | 720 | 0.4-0.6 | Φ290×850 |
| QVC-4 | 3000 | 1440 | 0.4-0.6 | Φ420*1150 |
| QVC-5 | 6000 | 2880 | 0.4-0.6 | Φ420*1150 |
| QVC-6 | 9000 | 4320 | 0.4-0.6 | Φ420*1350 |
