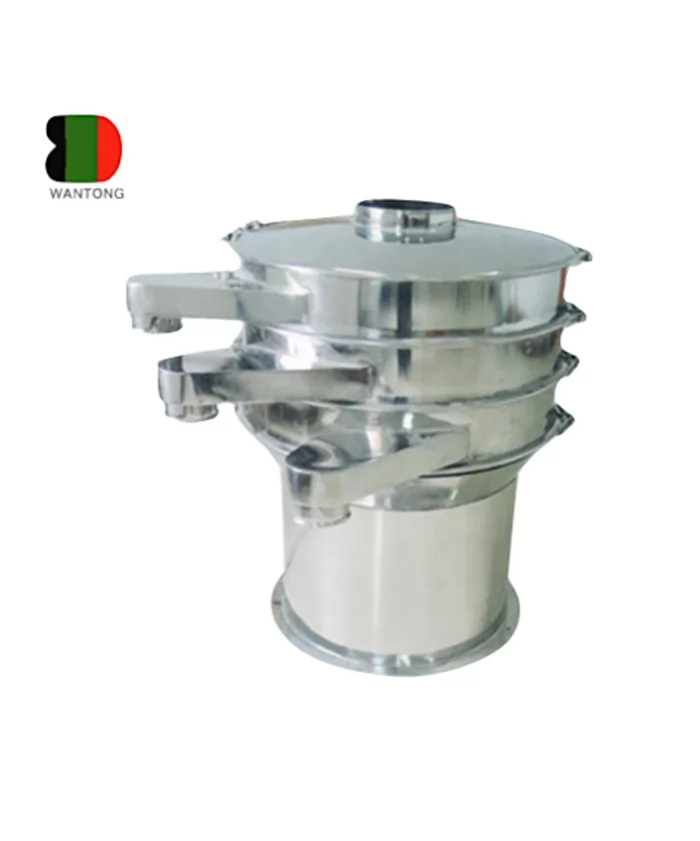

ZS Series High-Efficient Screener is a kind of great volume machinery designed according to the foreign technology and information.
The contact parts with raw material are all made of stainless steel. So it can be widely used in pharmaceutic, foodstuff, chemical industries, etc.
Products Details
1.Main Use of ZS food sifter machine
ZS Series High-Efficient Screener is a kind of great volume machinery designed according to the foreign technology and information.
The contact parts with raw material are all made of stainless steel. So it can be widely used in pharmaceutic, foodstuff, chemical industries, etc.
2.Technical Parameters of ZS food sifter machine
| Model | ZS-400 | ZS-600 | ZS-800 | ZS-1000 | ZS-1200 |
| Capacity (Kg/h) | 50-500 | 100-800 | 200-1200 | 300-1800 | 400-2500 |
| Motor power (Kw) | 0.2 | 0.4 | 0.75 | 1.1 | 1.5 |
| Fineness(mesh) | 2-200 | ||||
| Weight (kg) | 200 | 250 | 320 | 390 | 420 |
| Overall size(mm) | 600×500×1100 | 800×700×1150 | 1100×9500×1150 | 1200×1100×1250 | 1380×1300×1280 |
3.Configuration List of ZS food sifter machine
| Item | Specification | Qty. | Supplier |
| Oscillating pill | silicon rubber | 1set | SELF |
| Screen mesh | 304 stainless steel, changeable | 1set | SELF |
| Screen ring | After special processing | 1set | SELF |
| Vibrating motor | vertical | 1 | SHANGHAI |
| Magnetic starter | Closed | 1 | DELIXI |
| Pimpi | silicon rubber | 3 | RICHENG |
| Cage | 304 stainless steel | 1set | SELF |
| The steel hoop | 304 stainless steel | 8 | SELF |
| Screw | 304 stainless steel | 1set | SELF |
| Control button | 10A | 2 | DELIXI |
